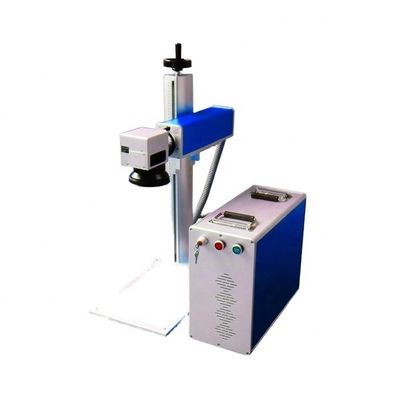

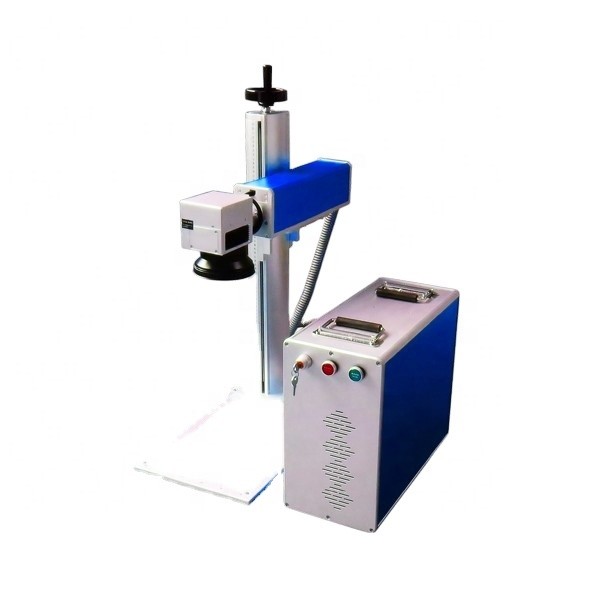

Precise Position 355nm 0.2mm UV Laser Cutter , Ultraviolet Laser Marking Machine

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MU-KF-00-HW05
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wooden box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Marking Area 110x110mm, 175x175mm Marking Speed 7000/s
Marking Depth 0.01~1mm Min Line Width 0.013mm
Min Character 0.2mm Cooling Style Air Cooling
Positioning Way Red Light Control Board JCZ
High Light

355nm uv laser cutter


0.2mm uv laser cutter


0.2mm ultraviolet laser marking machine

Leave a Message
Product Description

Online Diode Laser Marker UV Printing Laser Marking Machine Clear Marking



Model introdution:


UV laser marking machine uses 355nm wavelength UV laser light source. It has very small size spots, can greatly reduce the mechanical deformation of the material, reduce the impact of thermal effect on the workpiece. It is a kind of cold laser, mainly used in the high-end market ultrafine marking, pharmaceutical, cosmetics and other polymer materials marking, high speed grading of microporous glass, silicon materials on the complex pattern of wafer cutting, etc.


Advantages and features:


  • When space is limited, the marking is clear: the laser spot diameter is greatly affected by wavelength. The UV wavelength is 1/3 of the standard wavelength (355 nm instead of 1064 nm), and the size of the spot can be reduced accordingly, providing the possibility of marking when space is limited.
  • Maintain quality in case of inconsistency: Due to the high absorption rate, material inconsistency does not affect label quality. This allows the laser to produce acceptable results using similar parameters or a wider range of parameters across a variety of materials.


Technical specification:


         Model ML-MU-KF-00-HW05
Laser power 3W 5W 10W
Weave length 355nm
Marking area 110*110mm,175*175mm
Laser repetition frequency 20KHZ-200KHZ
Beam quality M²≤1.1
Marking speed 7000/s
Marking depth 0.01-1mm
Repetition Precision 0.001mm
Minimum Line Width 0.013mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Red light
Control software JCZ EZCAD marking software and UV laser marking machine software
Control board JCZ
Operating Voltage AC220V/50HZ/2A
Gross Power ≤500W
Supported Windows Windows XP,7,8,10
Certificate FDA, CE
Material can be processed all metal material and all non metal material
Others USB cable for connection, Flash drive with software and English manuals.
Packaging Wooden box
Packaging Dimension 1110mm x 860mm x 1520mm
Gross weight 150kg


Applied Materials:


  1. All the metals: gold, silver, titanium, copper, alloy, aluminum, magnesium, zinc, steel, manganese steel, stainless steel, carbon steel, mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet, aluminum, various metal plate, all kinds of sheet metal, rare metal, coating metal, special surface treatment, such as anodized aluminum plating aluminium magnesium alloy surface oxidation decomposition.
  2. Non-metal: non-metal coating materials, industrial plastics, hard plastics, rubber, ceramics, resin, carton, leather, clothing, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin and other materials.


Marking samples for reference:


Precise Position 355nm 0.2mm UV Laser Cutter , Ultraviolet Laser Marking Machine 0


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.
