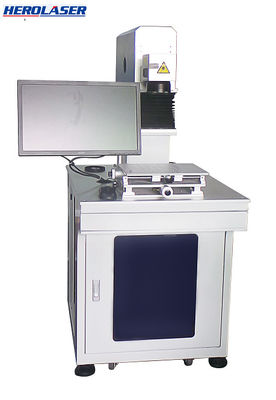

High Productivity CE Approval 3W UV Laser Marking Machine For Plastic

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MU-KF-00-HW03/05/10
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details 1110mm x 860mm x 1520mm in wooden box
Delivery Time 12 days
Payment Terms T/T, Western Union
Supply Ability 600 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Key Selling Point High Productivity Environment 10-40 ℃
Frequency 1-100khZ Laser Power 3w 5w(Optional),3W/5W/10W
Product Name 3w 5w 355nm UV Laser Marking Machine For Glass Metal Plastic Material Laser Wavelength 355
Applicable Material Glass,bambooproducts,Meta,rubberplate,leather Laser Source UV Laser
High Light

CE UV Laser Marking Machine


3W UV Laser Marking Machine


3W uv laser printing machine

Leave a Message
Product Description

Portable 3W/5W/10W UV Laser Marking Machine for PP Plastic PVC Wood
Product introduction:
This UV laser machine is a general purpose solution for a range of industries. Medical device manufacturers use our UV or "cold label" solutions to create the smooth, hygienic markings required by the FDA, including unique device identification markings. In the electronics and automotive industries, ultraviolet lasers allow companies to mark small, delicate components, including circuit boards and silicon wafers, reducing waste.
(1) Adopt doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
(2) Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect UV marking in some relatively hard material.
(3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so the UV marker is very suitable for precision uv marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
(4) High efficiency of the photoelectric conversion and long service life.
(5) The UV marker can support logos and graphs designed in DXF format from PLT, BMF, AI, JPG, etc.
(6) The UV marking machine can mark date, bar code and two-dimension code automatically.
(7) Superior performance, good stability, high conversion rate and low energy consumption.
Technical details:

Model ML-MU-KF-00-HW03/05/10
Laser source Inngus/JPT/Maiman
Laser power 3W 5W 10W
Weave length 355nm
Marking area 110*110mm,175*175mm
Laser repetition frequency 20KHZ-200KHZ
Beam quality M²≤1.2
Marking speed 7000-12000mm/s
Marking depth 0.01-1mm
Repetition Precision 0.001mm
Minimum Line Width 0.013mm
Minimum Character 0.2 mm
Cooling Style Air cooling
Positioning Way Red light
Control software JCZ EZCAD marking software and UV laser marking machine software
Control board JCZ
Operating Voltage AC220V/50HZ/2A
Gross Power ≤500W
Supported Windows Windows XP,7,8,10
Certificate ISO, CE
Material can be processed all metal material and all non metal material
Others USB cable for connection, Flash drive with software and English manuals.
After-sales Service Warranty for three year.We will send operation video and manual for the machine. Our engineer will do training online. If needed,
we can send our engineer to your site for training or you can send the operator to our factory for training. When you have any
questions, no matter machine or operate, you can contact us directly.
If any parts broken, we will replace a new one for you in free.
After warranty we will still supply lifetime maintenance in free. Just with parts cost charging if broken.
Packaging Wooden box
Packaging Dimension 880*870*1100mm
Gross weight 150kg


Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company,metals and plastics

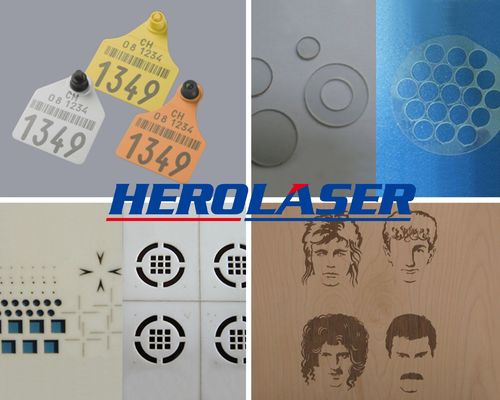

Marking samples for reference:

High Productivity CE Approval 3W UV Laser Marking Machine For Plastic 0


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hous quick response and free consulting.
  • Free sample marking or testing is avaiable
  • Progressing solution design to all clients, including distributors and end users.


High Productivity CE Approval 3W UV Laser Marking Machine For Plastic 1
