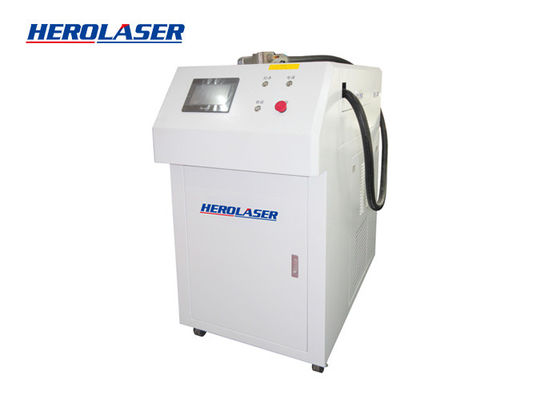

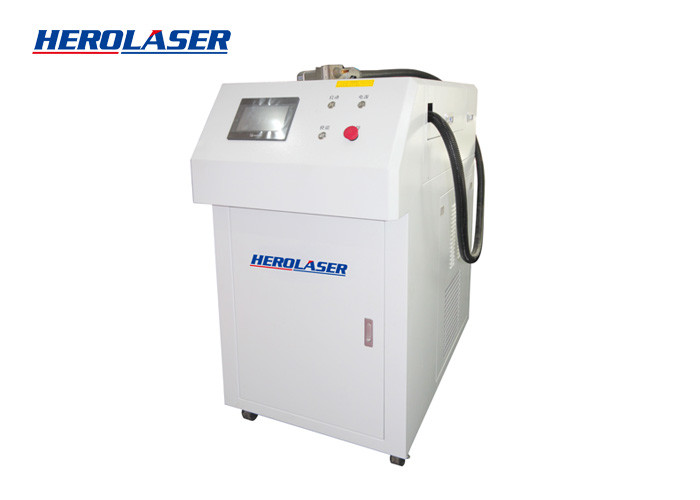

SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving

  • SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving
  • SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving
  • SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving
  • SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving
  • SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving
Place of Origin CHINA
Brand Name Herolaser
Certification CE, ISO9001
Model Number ML-2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 10-15DAYS
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pulse Width 0.5~20ms Certification CE, SGS
Condition New Warranty 2 Years
Single Pulse Energy 80J Wavelength 1064nm
Cooling System Water Cooling Welding Depth 0.1-3.5mm
Pulse Frequency 0~100Hz Power Supply 220v/50Hz, 380V/50/60HZ
Laser Type IPG/MAX/RECI Keywords High-quality Laser Welding Machine
High Light

SGS Handheld Fiber Laser Welding Machine

,

2000W Handheld Fiber Laser Welding Machine

,

SGS light weld laser welder
Leave a Message
Product Description

Fifth Generation Fiber Laser Welding Machine 1000W 1500W 2000W



Machine Advantages
1. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

2. Easy to operate, no need welding work license, unskilled operator can also weld products beautifully.

3. No effect for etch after welding, low oxidation rate, the color of the processing parts is intact.

4. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

5. The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welding operators a year.

6. Laser welding consumes less material and has a long-life, Safer and more environmentally friendly.



Applicable to material and fields
Ambry industry, railings of stairs and elevator , shelves, oven, stainless steel guardrail , distribution box, stainless steel home supplies etc.



SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving 0SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving 1SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving 2



Specification



No. Item ML-WF-500W
1 Laser Power 500W
2 laser Wavelength 1070 NM
3 Fiber Cable length 10 meters
4 Cooling method Water
5 Voltage 220V
6 Power consumption 5KW
7 Frequency 50/60 HZ
8 Currency 23A
9 Laser gun Motor/lens wobble
10 Focus length 150mm
11 Cryogenic water flow 70 L/min
12 Room temperature water flow 15 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder auto feeding and drawback



Material Protective gas Welding depth 500W 1000W 1500W 2000W
Aluminum N2 1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5       √
Stainless Steel Argon 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5   √ √ √
2.0   √ √ √
2.5     √ √
3.0       √
Carbon steel CO2 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5     √ √
galvanized sheet

Argon



 0.5 √ √ √ √
0.8 √ √ √ √
1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0       √
2.5       √



Packing Method
Plywood box packaging (packed in one plywood box)

SGS Approval 2000W Handheld Fiber Laser Welding Machine Time Saving 3
