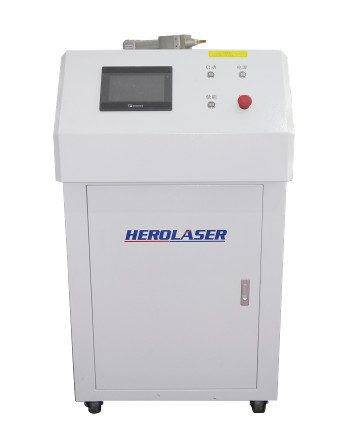

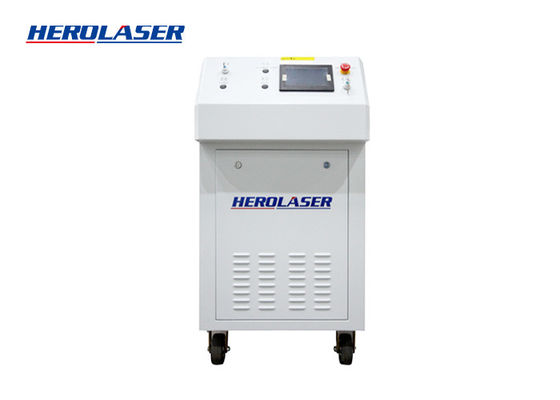

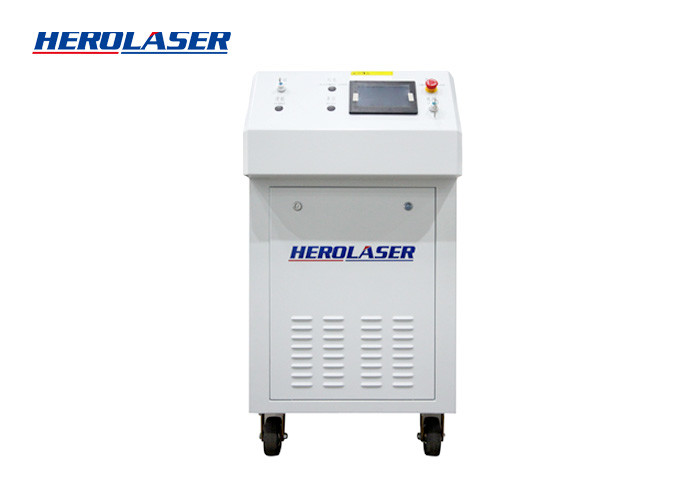

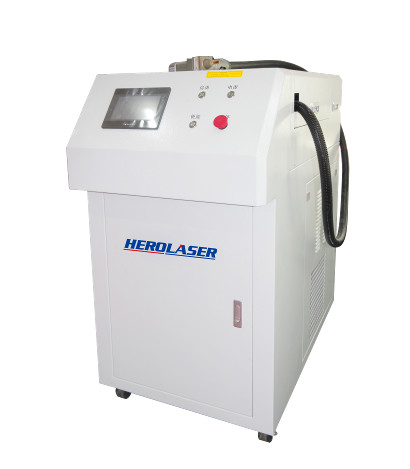

1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation

  • 1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation
  • 1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation
  • 1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation
  • 1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation
  • 1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation
Place of Origin CHINA
Brand Name Purple Horn
Certification CE/ISO
Model Number ML-2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 10-15DAYS
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100 SETS PER MONTH
Product Details
Condition New Warranty 2 Years
Single Pulse Energy 80J Certification CE, SGS
Laser Wavelength 1064nm Pulse Frequency 0~100Hz
Pulse Width 0.5~20ms Welding Depth 0.1-3.5mm
Focal Spot Diameter 0.2mm~3mm Cooling System Water Cooling
Laser Type IPG Fiber Laser Generator Power Supply 220v/50Hz, 380V/50/60HZ
Highlight

1500W Handheld Fiber Laser Welding Machine

,

1070nm Handheld Fiber Laser Welding Machine

,

1070nm portable laser welding machine
Leave a Message
Product Description

Easy Operation Fiber Laser Welder 1000W/1500W/2000W Laser Welding Solution



Machine Advantages
1. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

2. Easy to operate, no need welding work license, unskilled operator can also weld products beautifully.

3. No effect for etch after welding, low oxidation rate, the color of the processing parts is intact.

4. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

5. The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welding operators a year.

6. Laser welding consumes less material and has a long-life, Safer and more environmentally friendly.



Technical Specifications

No. Item ML-WF-1000W ML-WF-1500W ML-WF-2000W
1 Laser Power 1000W 1500W 2000W
2 laser Wavelength 1070 NM 1070 NM 1070 NM
3 Fiber Cable length 10 meters 10 meters 10 meters
4 Cooling method Water Water Water
5 Voltage 220V 220V 380V
6 Power consumption 5KW 7KW 9KW
7 Frequency 50/60 HZ 50/60 HZ 50/60 HZ
8 Currency 23A 32A 23A

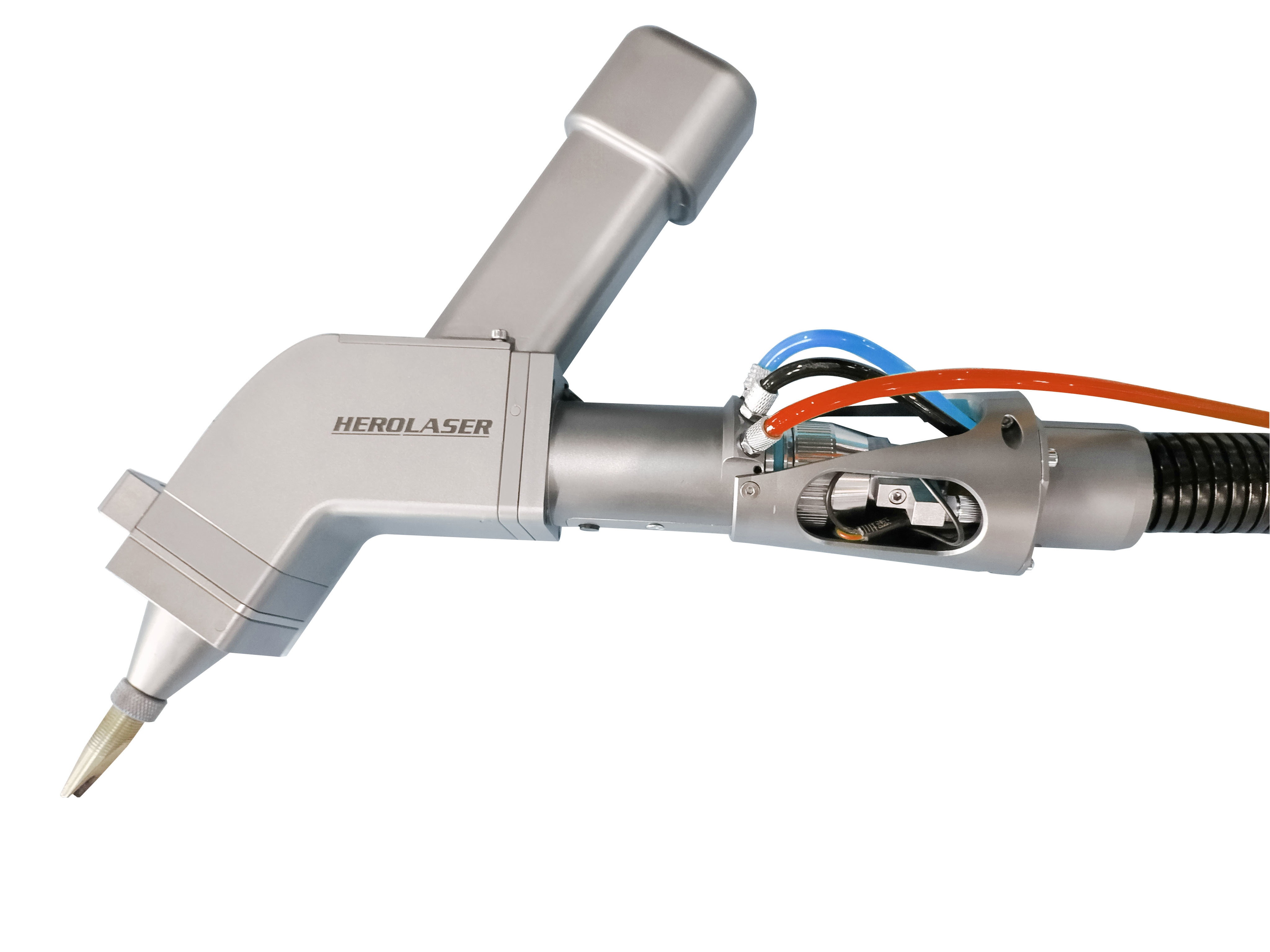

9 Laser gun Motor/lens wobble Motor/lens wobble Motor/lens wobble
10 Focus length 150mm 150mm 150mm
11 Cryogenic water flow 70 L/min 70 L/min 83 L/min
12 Room temperature water flow 15 L/min 18 L/min 18 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder auto feeding and drawback



Welding Data

Material Protective gas Welding depth 500W 1000W 1500W 2000W



Aluminum



N2

 1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5       √





Stainless Steel





Argon

 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5   √ √ √
2.0   √ √ √
2.5     √ √
3.0       √





Carbon steel





CO2

 0.5 √ √ √ √
0.8 √ √ √ √
1.0 √ √ √ √
1.2   √ √ √
1.5     √ √
2.0     √ √
2.5     √ √
galvanized sheet

Argon



 0.5 √ √ √ √
0.8 √ √ √ √
1.0   √ √ √
1.2   √ √ √
1.5     √ √
2.0       √
2.5       √





Remark: welding depth is not equal to material thickness, eg. 6mm can be weld by 2000W model.

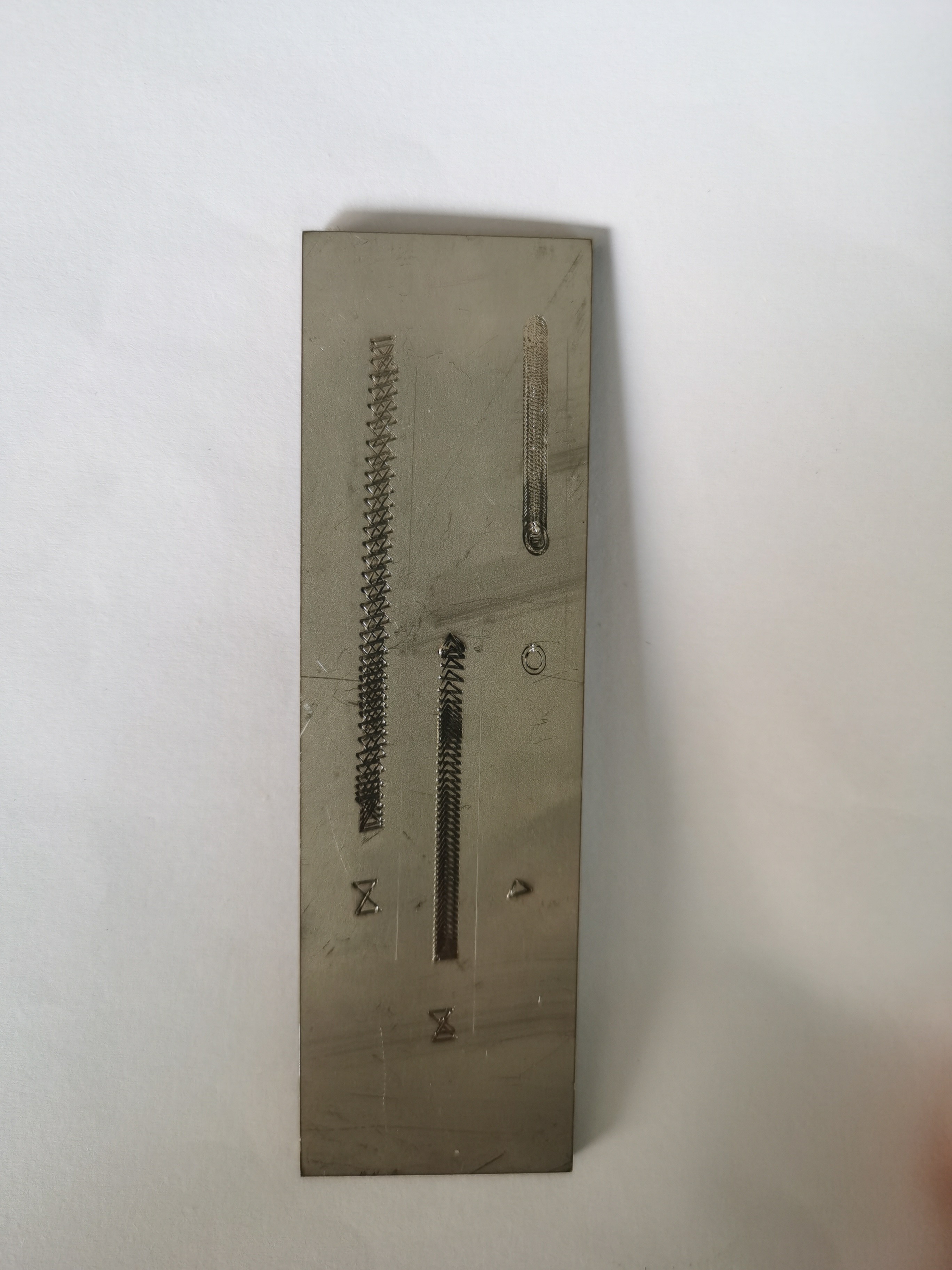

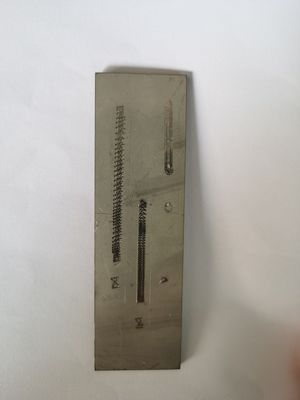

Sample Display

1500W 1070nm Handheld Fiber Laser Welding Machine Easy Operation 0
