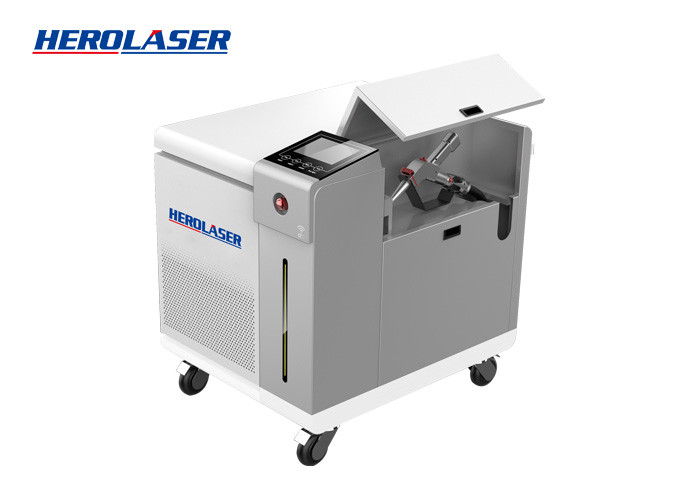

2000W Handheld Fiber Laser Welding Machine

Place of Origin CHINA
Brand Name Herolaser
Certification CE, ISO9001
Model Number ML-2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 10-15DAYS
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100 SETS PER MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Pulse Width 0.5~20ms Certification CE, SGS
Condition New Warranty 2 Years
Single Pulse Energy 80J Focal Spot Diameter 0.2mm~3mm
Cooling System Water Cooling Welding Depth 0.1-3.5mm
Pulse Frequency 0~100Hz Laser Wavelength 1064nm
Power Supply 220v/50Hz, 380V/50/60HZ Laser Type IPG Fiber Laser Generator
Keywords Fiber Laser Welding Machine Metal Max. Output Power 500w
High Light

IPG fiber Handheld Fiber Laser Welding Machine


2000W Handheld Fiber Laser Welding Machine


ipg handheld laser welder

Leave a Message
Product Description

Laser Welding System Handheld Operate 2000W Laser Welder Wobble Technology


Herolaser New Gen. Handheld Laser Welding Machine


This machine is equipped with our own invention of wobble welding head, successfully developed the wobble welding mode. The product makes up for the defects of traditional laser products, has the advantages of alternate spot size and strong fault tolerance, and obtains better weld forming effect.

Through simple operation, different welding methods of different welding heads can be realized.




No. Item ML-WF-2000W
1 Laser Power 2000W
2 laser Wavelength 1070 NM
3 Fiber Cable length 10 meters
4 Cooling method Water
5 Voltage 220V
6 Power consumption 5KW
7 Frequency 50/60 HZ
8 Currency 23A
9 Laser gun Motor/lens wobble
10 Focus length 150mm
11 Cryogenic water flow 70 L/min
12 Room temperature water flow 15 L/min
13 water distilled water
14 laser Control method laser enable+ security lock+ metal switch/ safety clamp
15 Touch screen PLC screen and board
16 Wire feeder auto feeding and drawback


Material Protective gas Welding depth 500W 1000W 1500W 2000W
Aluminum N2 1.0
Stainless Steel Argon 0.5
Carbon steel CO2 0.5
galvanized sheet





Applicable to material and fields

Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.
