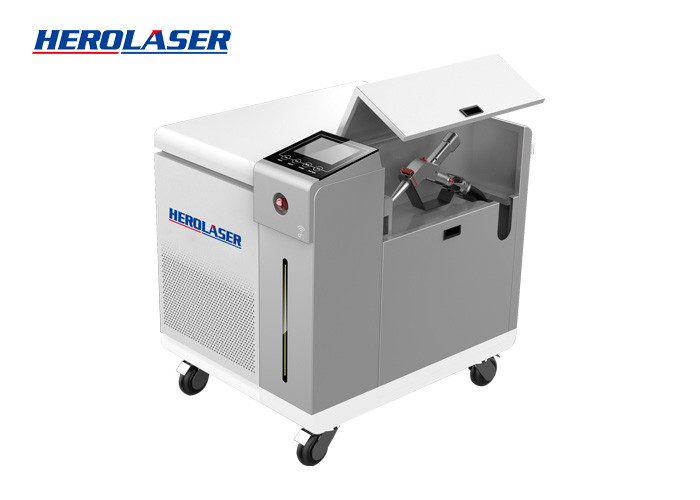

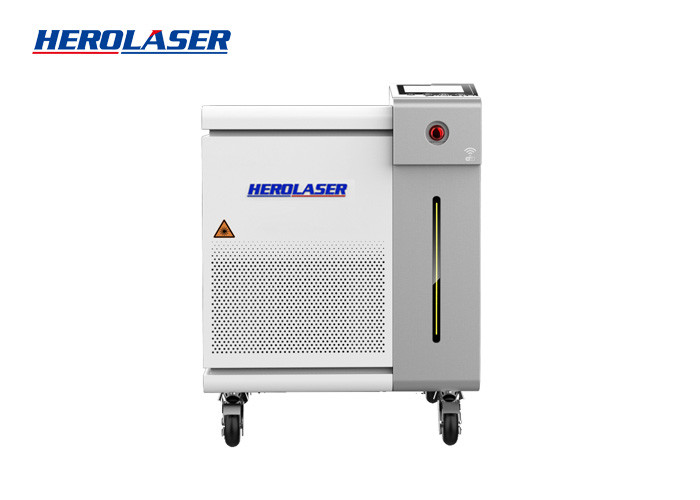

1070nm Fiber Optic 1kw Handheld Laser Welding Machine For Metal

Place of Origin China
Brand Name Herolaser
Certification CE, ISO9001
Model Number ML-WF-1000W
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 10-45 days
Payment Terms T/T, L/C, D/A, D/P
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Herolaser Hand-held Laser Welding Machine Laser Power 1000W/1500W/2000W
Fiber Optic Cable Length 10-15m Laser Wavelength 1070nm
Technical Parameter Continuous/Modulation Wave Welding Speed 0~120 Mm/s
High Light

1070nm 1kw handheld laser welding machine

,

Fiber Optic 1kw handheld laser welding machine

,

1070nm handheld fibre laser welder

Leave a Message
Product Description

2021 Hot Sale Laser Welder Fiber Optic Laser Metal Welding Machine 1000W/1500W/2000W

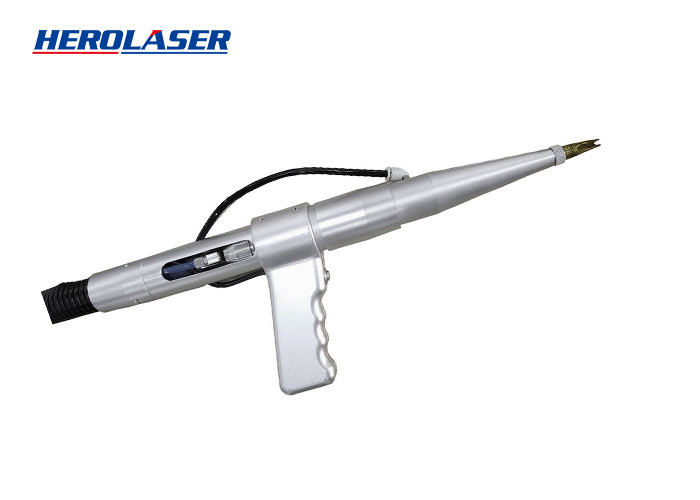

Herolaser Hand-held Laser Welding Machine adopts the latest fiber laser, equipped with self-developed wobble welding head which fills the blank in hand-held laser welding field. It has simple operation, good welds, high welding speed and zero consumables. It can perfectly replace the traditional argon arc welding, electric welding and other processes while welding in thin stainless steel sheet, iron sheet, galvanized sheet and other metal materials. Hand-held laser welding machine applies to cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors, windows guardrail, distribution boxes, stainless steel home and other complex welding process.



Laser type
Fiber laser source, 1070nm, continuous/modulation wave
Laser power
1000, 1500, 2000 watts
Cable length
10-15 meters
Cooling way
Water cooling
Machine size
1370*850*1500 mm
Guarantee and lifespan
Two years for laser source, around 10,000 hours
Welding spot
0-120 mm/s
Material
Stainless steel, carbon steel, alloy, aluminum, galvanized sheet...



Maintenance Tips

  • Hand-held laser welding machine equipment must be well grounded, otherwise there will be following problem:

1) The machine is prone to strong induction or leakage.

2) Sharing the workbench with other ungrounded equipment, leakage of electricity from other equipment may cause damage to parts of the equipment (such as argon arc/welding/secondary welding).

  • Please turn off the main power for each shift after work or if the equipment is not used for a long time.
  • Equipment maintenance should be regularly to clean, cooling water chiller replaced periodically and to filter dust removal, if the working temperature is low, antifreeze fluid does not take the place of deionized water, cannot be used for long time, please clean with distilled water or deionized water after the winter water chiller, and restore the use of distilled water or deionized water cooling fluid.
  • If there is a long downtime (such as long holiday), push the cooling water in the equipment to be emptied, and use compressed air to blow the residual water out of the equipment (including the laser/chiller).
