Auto Feeding 150mm Handheld 2000w Laser Welding Solution Smooth Working

  • Auto Feeding 150mm Handheld 2000w Laser Welding Solution Smooth Working
  • Auto Feeding 150mm Handheld 2000w Laser Welding Solution Smooth Working
  • Auto Feeding 150mm Handheld 2000w Laser Welding Solution Smooth Working
Place of Origin China
Brand Name Purple Horn
Certification CE, ISO9001
Model Number ML-WF-2000W
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 10-45 days
Payment Terms T/T, , L/C, D/A, D/P
Supply Ability 20 sets per month
Product Details
Name Purple Horn New Gen. Laser Welding Machine Laser Power 1000W 1500W 2000W

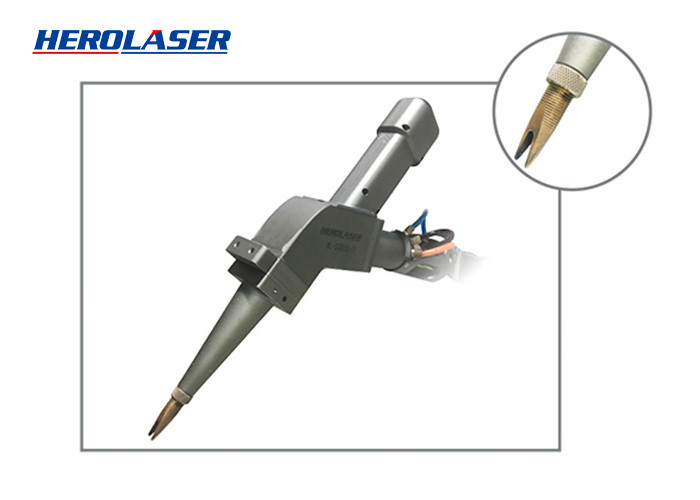

Laser Gun Motor/lens Wobble Focus Length 150mm
Laser Control Method Laser Enable + Security Lock + Metal Switch/safety Clamp Wire Feeder Auto Feeding And Drawback
Highlight

150mm Laser Welding Solution

,

2000w Laser Welding Solution

,

High Efficiency handheld 2000w laser
Leave a Message
Product Description

Portable Fiber Laser Welding Machine 1000W 1500W 2000W High Efficiency Safe Environmentally Friendly



Machine advantages:
1. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

2. Easy to operate, no need welding work license, unskilled operator can also weld products beautifully.

3. No effect for etch after welding, low oxidation rate, the color of the processing parts is intact.

4. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

5. The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welding operators a year.

6. Laser welding consumes less material and has the advantages of long life, safety and environmental protection.



Comparison of different welding methods:

Comparison Traditional Welding Laser Welding Purple Horn New Gen. Laser Welding
Heat Input Very high low low
Deformation Great Slight Slight
Adhesive Strength Moderate High Very high
Subsequent Processing Polish Little or no polish Little or no polish
Welding Speed Moderate 2 times faster than Argon arc welding 2 times faster than Argon arc welding
Applied Materials Stainless Steel/Carbon Steel/Galvanized Sheet Stainless Steel/Carbon Steel/Galvanized Sheet Stainless Steel/Carbon Steel/Galvanized Sheet
Consumables Many A few A few
Operation Complex Moderate Easy
Degree of Safety Low High High
Environmental Standard Environmentally damaging Environmentally friendly Environmentally friendly
Error Tolerance High Low High
Weave Bead Welding No No Yes
Spot Width Fixed Fixed Alterable
Welding Quality Poor Moderate Good


Welding data:

Material Protective gas Welding depth 1000W 1500W 2000W



Aluminum



N2

 1.0 √ √ √
1.2 √ √ √
1.5   √ √
2.0   √ √
2.5     √





Stainless steel





Argon

 0.5 √ √ √
0.8 √ √ √
1.0 √ √ √
1.2 √ √ √
1.5 √ √ √
2.0 √ √ √
2.5   √ √
3.0     √
Carbon steel





CO2

 0.5 √ √ √
0.8 √ √ √
1.0 √ √ √
1.2 √ √ √
1.5   √ √
2.0   √ √
2.5   √ √
Galvanized sheet Argon 0.5 √ √ √
0.8 √ √ √
1.0 √ √ √
1.2 √ √ √
1.5   √ √
2.0     √
2.5     √


Remark: welding depth is not equal to material thickness, eg. 6mm can be weld by 2000W model.
