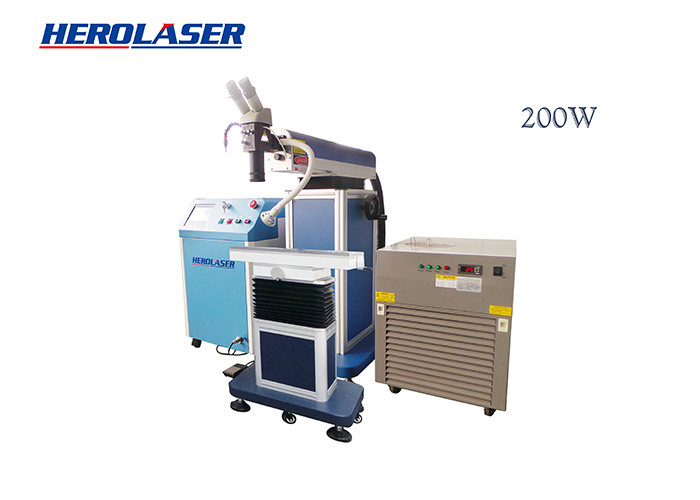

1064nm Mould Laser Welding Machine

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M01-200W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Source YAG Laser Laser Wevelength 1064nm
Max Energy Per Pulse (Joule) 75J Pulse Duration (sec) 0.1S
Focal Length (mm) 90mm Pulse Repetition Frequency (Hz) ≤50Hz
Mode (CW Or Pulse) Pulse Exit Laser Beam Or  Beam Diameter At  Lens (mm) 0.2-2mm
High Light

YAG Mould Laser Welding Machine


1064nm Mould Laser Welding Machine


1064nm laser beam welding tool

Leave a Message
Product Description

1064nm Laser Welding Mould Laser Welding Machine No Heat Treatment Needed

Product introdution:
While TIG(tungsten inert gas) welding may be the preferred option for many factory mold welding, high power pulsed laser welding is a high quality process that can provide a repaired mold that behaves as if it were new. Repairing a worn mold is always cheaper than replacing it.
Plastics processors will find that the alternative method of pulsed laser welding provides better results with less damage to the base material, so the mold will produce better quality parts and significantly longer service life after repair.
Advantages and features:

Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:
1. Small heat-affected zone of laser repair welding will not lead to deformation of precision die, large welding depth, strong welding, sufficient melting, no repair marks, no depression in the joint of molten pool melt bump and matrix.

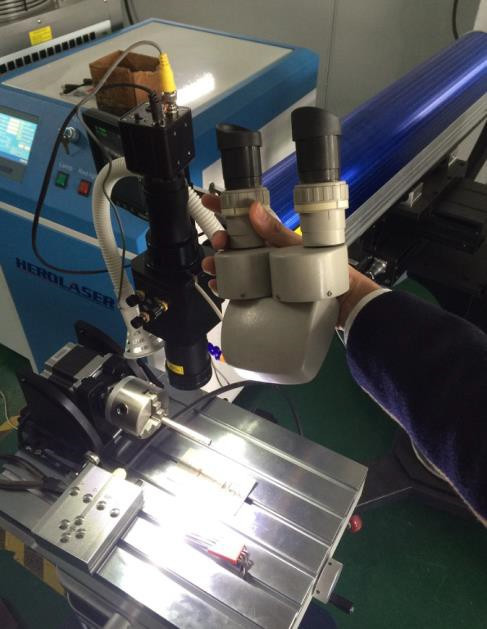

2. With a special microscope observation system for cross cursor, the magnification can be adjusted to achieve precise alignment.


Product parameters:
Model ML-WY-M01
Average laser power 200W
Max laser power 200W

Max energy of single pulse


Laser wavelength 1064nm
Pulse width 0-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.8mm
Power Supply 220VAC ± 10% / 50-60HZ
Power Consumption 6000w
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 40 degrees
Cooling water flow 10L/min
Dimensional 1400mm x 1400mm x 1500mm
Weight 340 kg
Cooling Way Water cooling
Laser Type Pulse

Field of application:


Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.

Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.

Samples for reference:

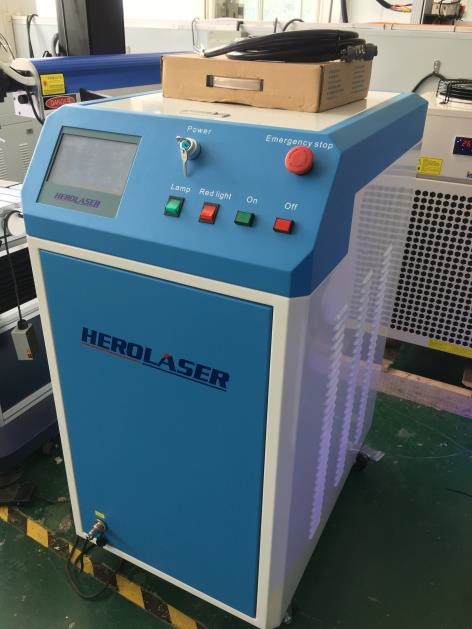

1064nm Mould Laser Welding Machine 0
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

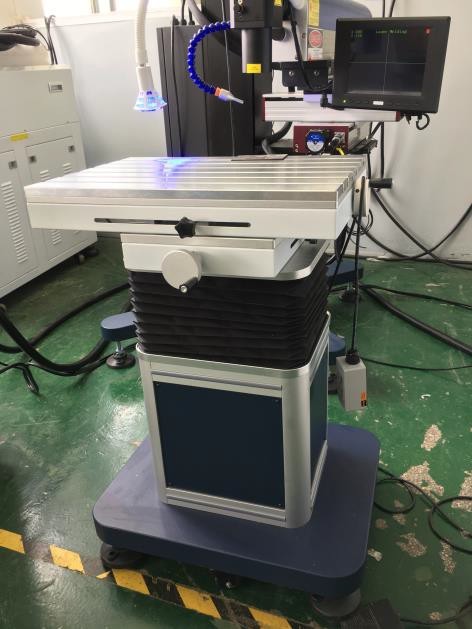

1064nm Mould Laser Welding Machine 1
