CE certified Crane Laser Mould Welding Machine On Precision Injection

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M01
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Laser Welding For Mold Repair Laser Wevelength 1064nm
Electricity Demand 220V /50Hz/60Hz Output Power 200W
Dimension 1570*480*1400mm Net Weight 530kg
Laser Source YAG Laser Xenon Lamp Made In China
High Light

Crane laser mould welding machine

,

CE laser mould welding machine

,

CE portable laser welding machine

Leave a Message
Product Description

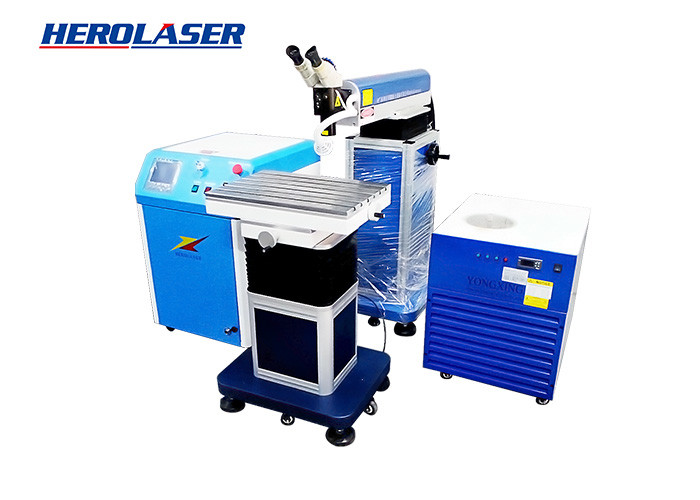

Crane Design Mould Repairing Laser Welding Machine Welding on Precision Injection


Advantages and features:

  • Using ceramic cavity, high reflectivity, high power, long service life. This model technology is reliable, the performance is stable, occupies the largest proportion in the domestic market. Equipped with 1.5P high power special cooling water system, can support the machine in good condition for a long time high power work.
  • The table base adopts electric lifting mode to move up and down.
  • The moving unit of the worktable adopts precision ball rod and linear guide rail.
  • Light weight, flexible, accurate positioning
  • The design of the machine, such as adjusting the laser arm; Laser head and supporting equipment can meet the requirements of various cutting tools and molds; Mold repair work.



Machine main parts:



  • Observing system: Equipped with 3D microscope with cross tracking. The welding position can be magnified 10 times (optional 15 times, 20 times). The center of the tracking cross coincides with the center of the laser spot. With high speed liquid crystal light valve filter protection device. Protect welder's eyes from laser flicker fatigue.
  • Control system: Industrial microcontroller control, high stability, easy maintenance.
  • Gas protection system: Automatic synchronous argon protection system, to ensure no oxidation stains in welding parts.



Product parameters:

Model ML-WY-M01
Average laser power 200W
Max laser power 200W

Max energy of single pulse

75J

Laser wavelength 1064nm
Pulse width 0-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.8mm
Power Supply 220VAC ± 10% / 50-60HZ
Power Consumption 6000w
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 40 degrees
Cooling water flow 10L/min
Dimensional 1400mm x 1400mm x 1500mm
Weight 340 kg
Cooling Way Water cooling
Laser Type Pulse





Field of application:



It is applicable to make patch welding on large, middle, small size plastic mold or die-casting mold used in industries like shell making industry, automobile industry, rubber industry and home appliance industry. This model is the first choice for processing services provider to proceed site processing for customer. Perfect welding on the precision injection, die-casting, mould repairing, metal ornament and accessories, stamping parts, lost wax casting, aluminum casg ting, sand hole repairing on stainless steel etc.

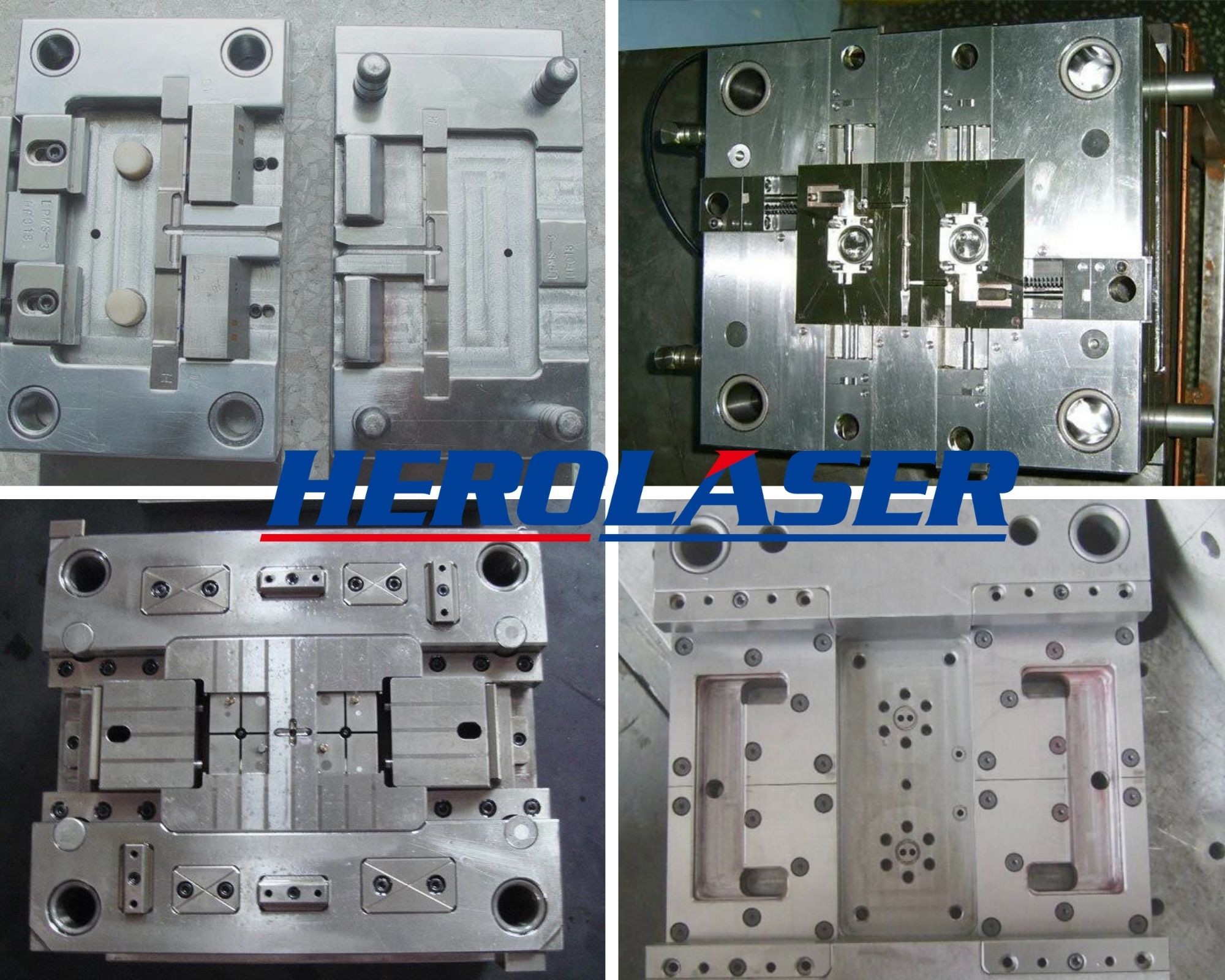

Samples for reference:

CE certified Crane Laser Mould Welding Machine On Precision Injection 0

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.



CE certified Crane Laser Mould Welding Machine On Precision Injection 1
