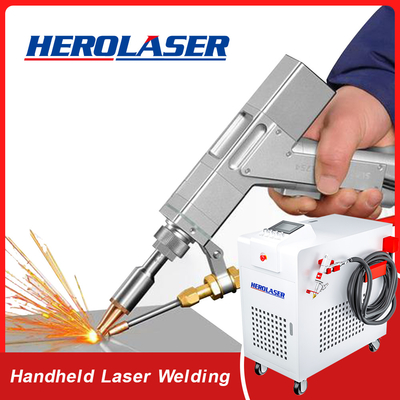

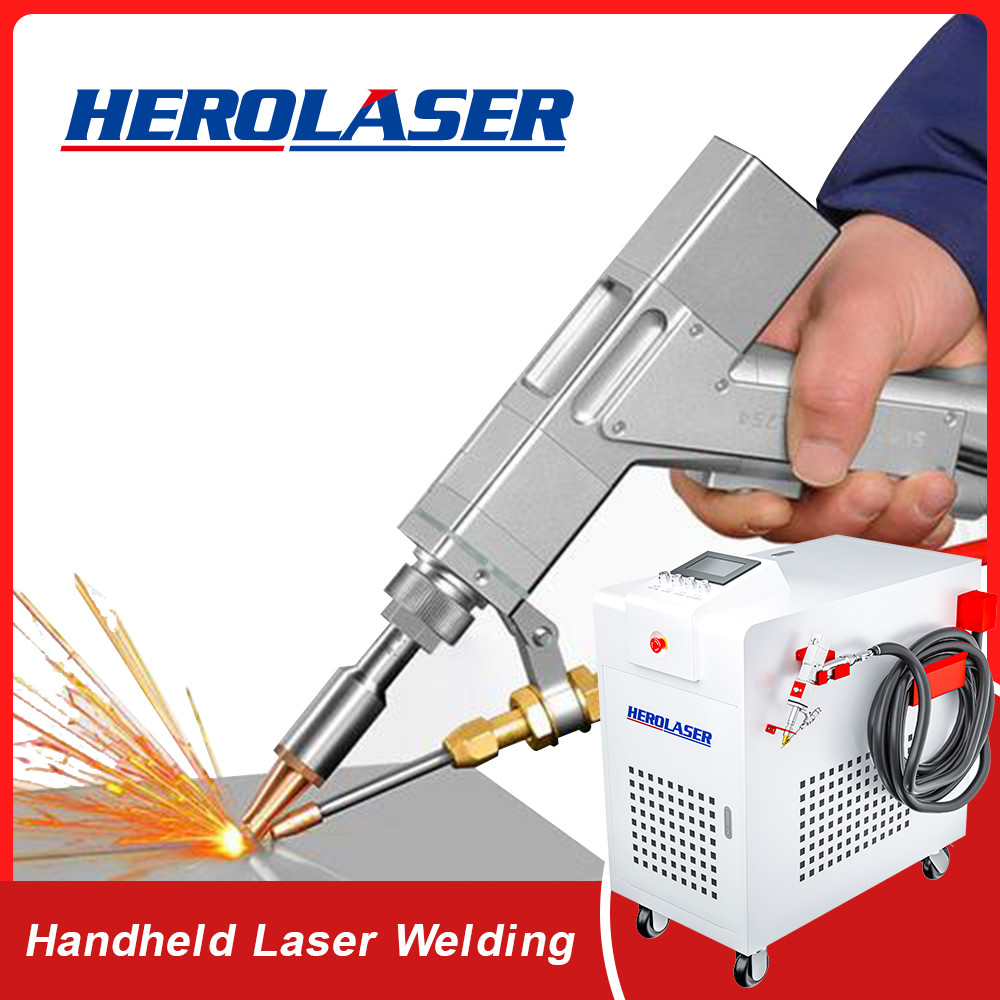

AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder

  • AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder
  • AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder
  • AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder
  • AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder
  • AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder
  • AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder
Place of Origin CHINA
Brand Name HEROLASER
Certification CE, ISO, FDA, SGS
Model Number ML-1000
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Export Plywood Box
Delivery Time 10-15 days
Payment Terms Western Union, L/C, T/T
Supply Ability 600 Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source IPG, MAX, RECI Key Words Portable Handheld Laser Welder, Flexible Handheld Laser Welding, Fiber Laser Mold Welding, Flexible Mold Laser Repairing
Pulse Width 0.5~20ms Condition New
Warranty 2 Years Single Pulse Energy 80J
Wavelength 1064nm Focal Spot Diameter 0.2-3.0mm
High Light

3000W Laser Metal Fabrication Welder

,

500W Laser Metal Fabrication Welder

,

AV220V Handheld Laser Welder
Leave a Message
Product Description

Industrial Handheld Laser Welder Metal Fabrication Welder



1. Introduction



Herolaser hand-held laser welding machine, The working mode of hand-held fiber laser welding machine, hand-held welding is flexible and convenient, and the welding distance is longer. Replace the previous fixed light path with a handheld welding gun. Hand-held fiber laser welding machine is mainly used for laser welding of long-distance and large workpieces. The heat-affected area is small during welding, and it will not cause work deformation, blackening, and traces on the back. The welding depth is large, the welding is firm, and the melting is sufficient.



AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder 0



2. Specifications



Product Hand-held laser welding machine Water chiller Industrial thermostatic
Power 500W-3000W Work temperature 15-35℃
Wavelength 1070nm Work humidity ≦70% without condensation
Cable length 5m-15m Weld thickness 0.5-3mm
Work mode Continuously/modulated Weld beam ≦0.5mm
Welding speed 0-120mm/s Work voltage AV220V



3. Compare with traditional argon arc welding technology



Subject

Traditional argon

arc welding

Conventional fiber

laser welding

Herolaser new generation

laser welding

Heat input to

the workpiece

 Very high low Low and momentary

Deformation

for workpiece,

undercut

 big small Very small

Bond strength with

base materials

 common good excellent
Subsequent processing polish/grinding a little polish no need grinding
Welding speed common fast super fast
Applied materials s.s. steel, aluminum, iron, copper and other metal materials, etc.
Consumables Large consumables little little
Operation difficulty complicate common very easy
Operation safety not safe safe safe
Environmental high pollution low pollution non-pollution
Welding fault tolerance good not good good
Pendular welding no no yes
Adjustable spot width no no yes
Welding quality contrast bad common excellent



4. Testing datas



4.1 The 1000W handheld laser welding machine with wobble head

Materials S.S. Steel Iron Galvanized sheet Angle Iron
Thickness 0.5-1.5mm 0.5-1.5mm 0.5-1.2mm 0.5-1.5mm



4.2 The 2000W handheld laser welding machine with wobble head

Materials S.S. Steel Iron Galvanized sheet Angle Iron
Thickness ≦2.5mm ≦2.5mm ≦2mm ≦2.5mm



5. Application Industry



Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.

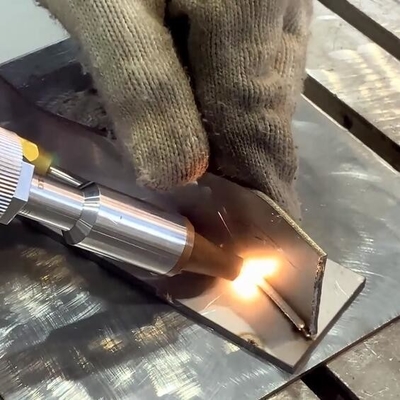

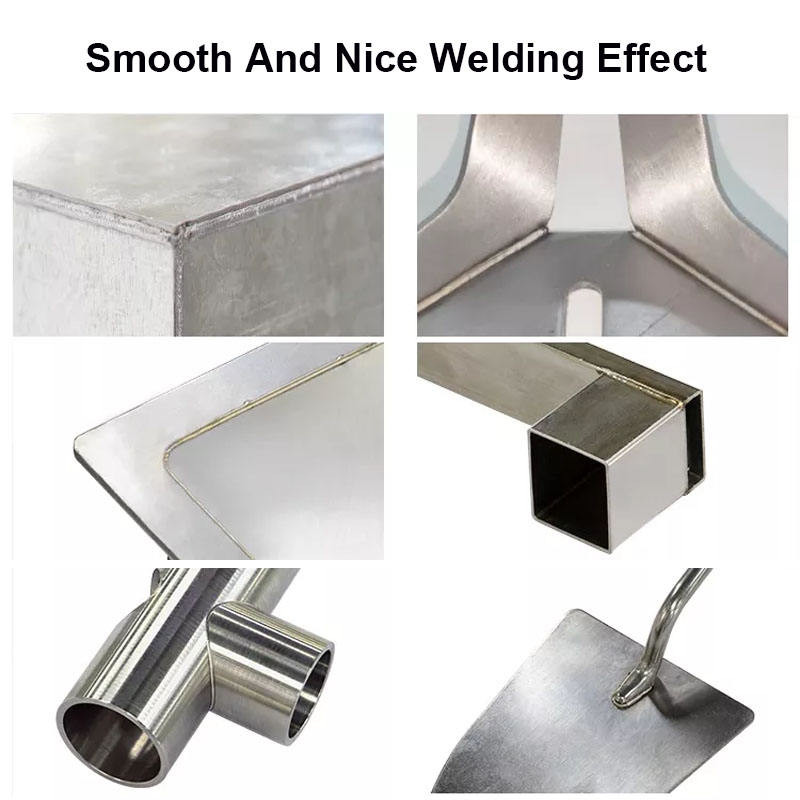

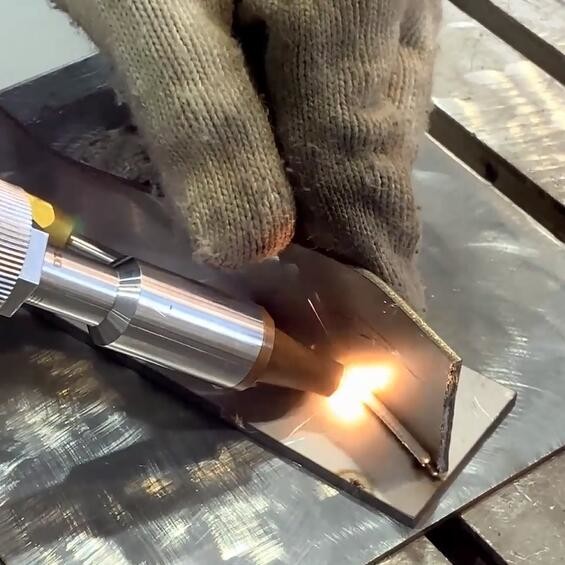

6. Welding samples



AV220V Handheld 500 - 3000W Laser Metal Fabrication Welder 1
