Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength

Place of Origin China
Brand Name Herolaser
Certification ISO9001, CE
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time 7 work days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Wavelength 1070nm
Dimension 1050*670mm*1200mm Welding Thickness 0.5-3mm
Certificates CE, ISO Laser Source IPG / MAX
Weight 230KG Welding Gap <0.5mm
Warranty Of Core Components 2 Years
High Light

Metal Handheld Laser Welder

,

Handheld Laser Welder 1500w

,

Handheld Fiber Laser Welding Machine 1070nm

Leave a Message
Product Description
1500w Herolaser Hand-held Laser Welder Welding Machine for Iron Steel Metal4

Parameter


Items

Parameter

Equipment Name

Handheld fiber laser welding machine

Laser Power

500W,800W,1000W,2000W,3000W

Laser Wavelength

1070 NM

Fiber Length

Standard 10M Maximum 15M

Work Way

Continuously modulated

Water Chiller

Industrial thermostatic water tank

Working Environment Temperature

15~35 ℃

Working Environment Humidity

-17%without condensation

Suggested Welding Thickness

0.5-5mm (depends on the materials)

Welding gap requirement

≤0.5mm

Working Voltage

220V/380V 50Hz

Dimension

1050mm x 670mm x 1200mm

Total Weight

240kg


Welding penetration data (wobble welding head)


Power

Stainless Steel

Carbon Steel

galvanized plate

500W

0.5-0.8mm

0.5-0.8mm

0.5-0.8mm

800W

0.5-1.2mm

0.5-1.2mm

0.5-1.0mm

1000W

0.5-1.5mm

0.5-1.5mm

0.5-1.2mm

2000W

0.5-3mm

0.5-3mm

0.5-2.5mm


Products Description

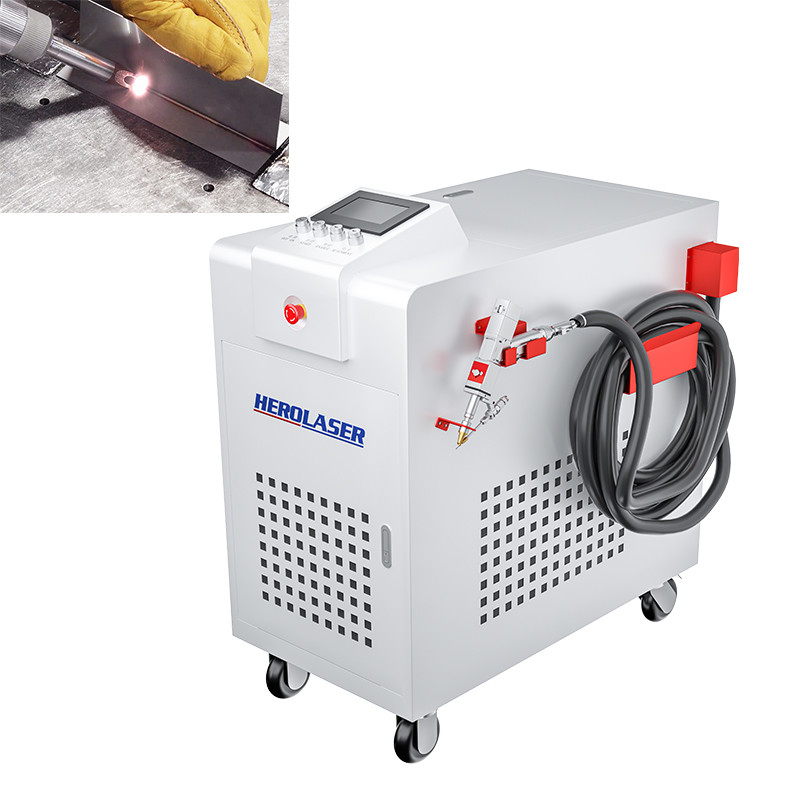

Water-cooled handheld laser welding machine

Most sales in the market are dominated by water-cooled hand-held welding. Water-cooled hand-held welding uses water

as thecooling medium. Our company sells water-cooled welding machines with different powers such as 500W, 800W,

1000W, 1500W, 2000W, 3000W, etc. And hand-held welding focuses on three models: 1000W, 1500W, and 2000W.

Water-cooled handheld welding machine features: built-in dual-temperature dual-control industrial chiller, constant temperature

regulation and heat dissipation, to ensure the heat dissipation of the core optical circuit components. With fiber laser, stable
and efficient


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 0

Characteristics

Features of Handheld Laser Welding Machine

Advantages of handheld laser welding machine

Simple operation, can be easily operated with simple training; beautiful products can be welded one take without a master
WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece, making the welding work more


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 1

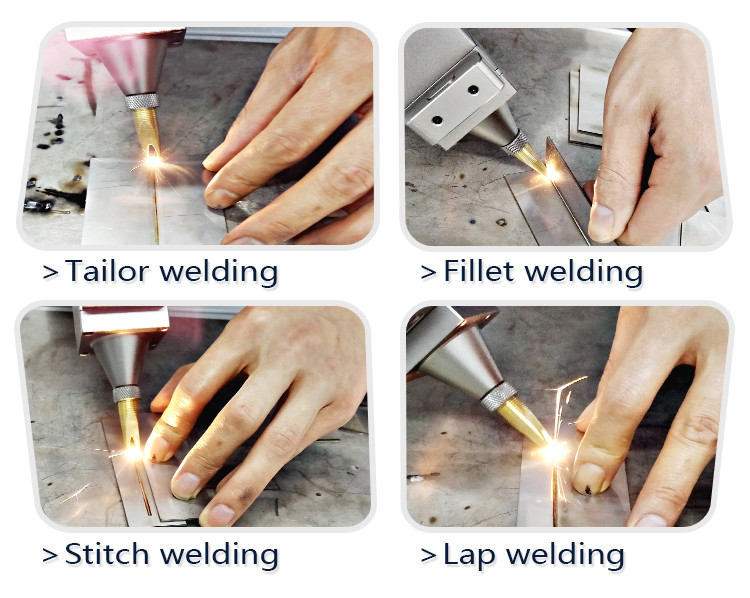

Process characteristics of hand-held laser welding machine

The welding seam is smooth and beautiful, the welding workpiece has no deformation, no welding scar, the welding is firm, and the
subsequent grinding process is reduced, saving time and cost.



Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 2




Advantages of handheld laser welding machine
Simple operation, can be easily operated with simple training; beautiful products can be welded one take without a master
WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece, making the welding work more efficient,
safe,energy-saving and environmentally friendly.


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 3




Related Laser Machine
Herolaser special in laser industry for about 17 years.In addition to handheld laser welding machine, we also have automatic
welder with robot arm, laser cleaning machines, laser deep engraving machine and laser marking machine.


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 4

Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 5

Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 6

Applicable Industry


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 7

Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 8

AIRSHIP AUTO PARTS


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 9



MEDICAL EQUIPMENT


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 10



METAL PROCESSING



Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 11



MACHINE MANUFACTURING


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 12



ELEVATOR MANUFACTURING


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 13



HOUSEHOLD APPLIANCES


Company Information


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 14

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

Certification


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 15

Packaging & Shipment


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 16


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 17

Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 18


Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 19

Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 20

Iron Steel Metal 1500w Handheld Laser Welder With 1070nm Wavelength 21

Our Services




---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service


FAQ

1. What model does Herolaser produce?

Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?

T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?

Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?

Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?

Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?

Of course you can.

7.How is the delivery and shipment?

Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?

Provide quick response and free consulting services within 8 hours.
