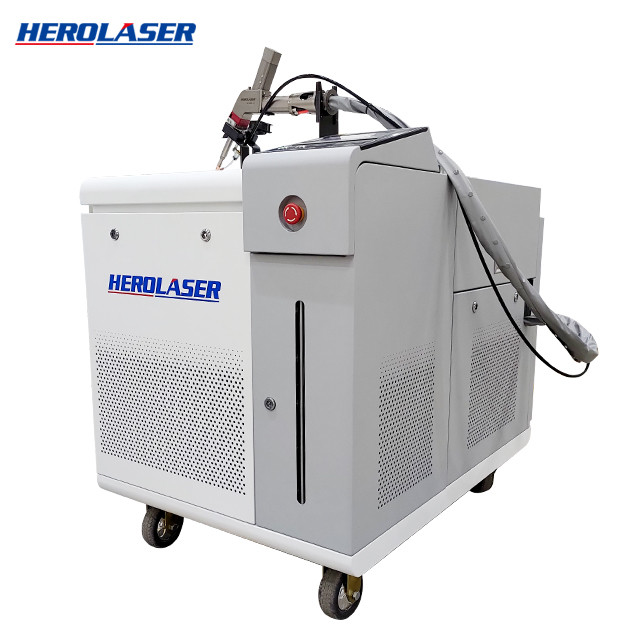

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold

  • Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold
  • Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold
  • Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold
  • Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold
  • Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold
Place of Origin China
Brand Name Herolaser
Certification CE, ISO
Model Number ML-WF-BP-IW2000
Minimum Order Quantity 1 Set
Price Negotiable
Delivery Time 7 work days
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 25 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ML-WF-BP-HW2000 Condition New
Laser Source Brand IPG Weight 240KG
Dimension 41*26*47(inch) Welding Thickness 0.5-3mm
Warranty 2 Years Wavelength 1070nm
Laser Cooling Water-Cooled
High Light

1000w Portable Welding Machine

,

Gabion Portable Welding Machine

,

Handheld Fiber Laser Welding Machine 1000w
Leave a Message
Product Description

Hand-held Fiber Laser Welding Cutting Machine with Competitive Price



No.
Item
Parameter
1
Name
Hand-held Laser Welding Machine
2
Welding Power
1000W,2000W,3000W
3
Laser wavelength
1070NM
4
Fiber Length
Normal:10M Max Support:15M
5
Operation Mode
Continuous / Modulation
6
Welding Speed
0~120 mm/s
7
Cooling Mode
Industrial Thermostatic Water Tank
8
Operating Ambient Temperature
15~35 ℃
9
Operating Ambient Humidity
< 70%(No condensation)
10
Welding Thickness
0.5-3mm
11
Welding Gap Requirements
≤0.5mm
12
Operating Voltage
AC220V
13
Machine Size(inch)
41*26*47
14
Machine Weight
240kg
Laser Welding Head Depth Data (Wobble Head)
Power
SS
Carbon Steel
Galvanized Plate
500W
0.5-0.8mm
0.5-0.8mm
0.5-0.8mm
800W
0.5-1.2mm
0.5-1.2mm
0.5-1.0mm
1000W
0.5-1.5mm
0.5-1.5mm
0.5-1.2mm
2000W
0.5-3mm
0.5-3mm
0.5-2.5mm
Products Description

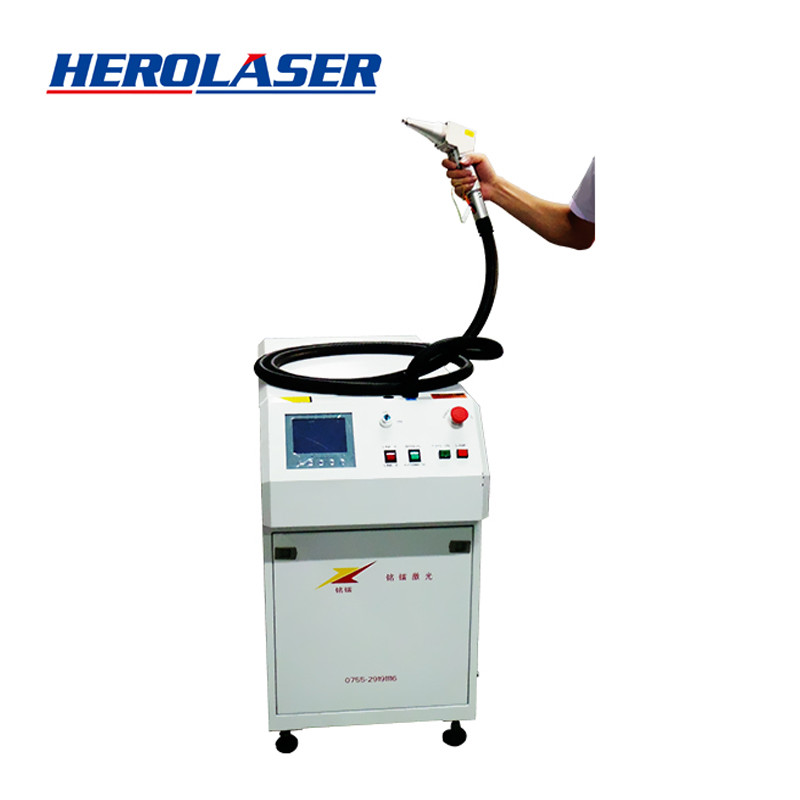

Herolaser Laser Hand-held Welding Machine Welder

A leader and navigator in the field of handheld laser welding


Machine Features for portable welding machine



1. welding by optical fiber, One-time forming workpiece, workpiece not deformed

2. No welding scars, smooth and beautiful

3. Welding welding is very firm

4. The welding head can be replaced to meet various welding needs

5. No technical requirements, anyone can weld perfectly

6. Almost no consumables, no grinding is required in processing process, material cost is low

7. The welding speed is fast, 1 worker can be used as 5 workers, labor cost is low

8. No dust and gas pollution, very environmentally friendly

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 0
Characteristics

Independent R&D Wobble welding head



Gun Features for portable welding machine



1) Wobble technology, swing welding, welding spot can be adjusted, Make up for the small defect of traditional

welding spot, Strong fault tolerance, Increased workpiece tolerance range and weld width

2) Automatic wire feeding design, Stable and continuous wire feeding makes welding seam more beautiful

3) Replaceable copper nozzles, Can meet various welding needs and various shapes.

4) Water cooling design for gun, protective gas design for workpiece, And temperature detection system

5) Except on/off button on machine, But also on/off button on welding gun, More safety for user
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 1

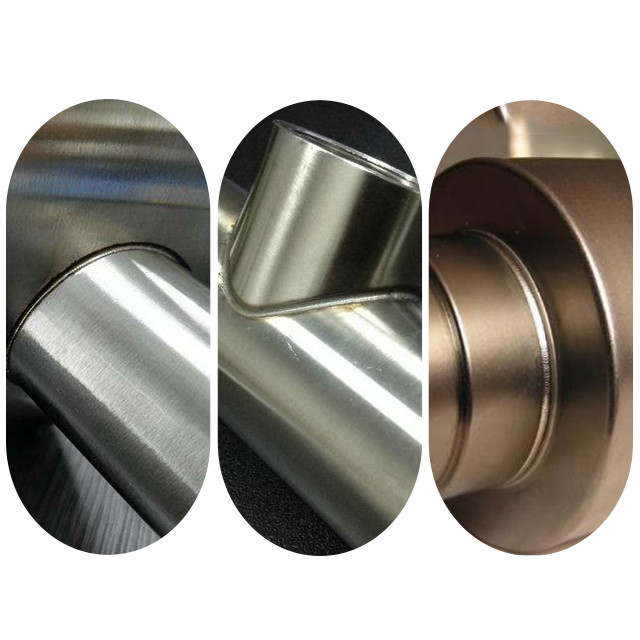

Technological Characteristics


The weld line is smooth and beautiful, the welded workpiece is free of deformation and welding scar, the welding is firm, the subsequent grinding process is reduced, and the time and cost are saved.
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 2
Applicable Industry
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 3



Ship

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 4



Auto Parts

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 5



Hardware Fitting

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 6



Metal Processing

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 7



Elevator Manufacturing

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 8



Domestic Appliance
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 9



Medical Equipment

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 10



aviation

Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 11



Machinery Manufacture

Company Information
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 12

ABOUT HEROLASER
Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
research and development, production and marketing of laser equipment group of companies, has formed a complete series of
industrial laser equipment supply platform.

With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
Certification
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 13

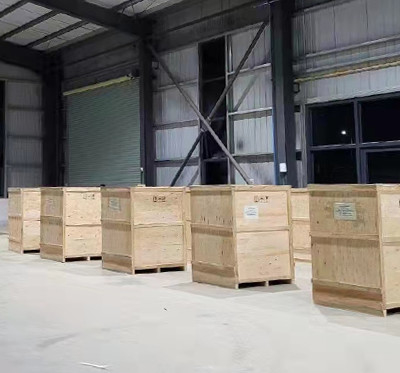

Packaging & Shipment
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 14
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 15
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 16
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 17
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 18
Professional Portable Welding Machine 1000w For Pipe Metal Mesh Gabion Mold 19
Our Services
---After-sales Services

① 2 year guarantee for laser source(people damaged are charged)
② Full technical support / by e-mail, call and video
③ Spare parts supply.
④ Free online training installation and operation
⑤ 12 hours quick feedback & after-sales services
⑥ ODM/OEM service

FAQ
1. What model does Herolaser produce?
Production of Laser Welding series, Laser Cleaning series, Laser Cutting series and Laser New energy automation, etc.

2. What are the payment methods of Herolaser Company?
T/T, LC, CAD, OA, Trade Insurance, Alibabapay

3. Does Herolaser accept Acceptance?
Yes, we accept bank acceptances within 6 months, not commercial acceptances.

4. Can I visit the factory?
Available to have a visit to our factory at any time.

5. What can I get with the purchase of equipment?
Each machine has a set of standard accessories.

6. Can I go to the factory to test the machine before shipment?
Of course you can.

7. How is the delivery and shipment?
Ship in 7 days after 100% payment; Packaged with Plywood box.

8. How about your pre-sales service?
Provide quick response and free consulting services within 8 hours.

9. How will you guarantee after-sales services?
We offer two years warranty for laser source, one year for the machine.
