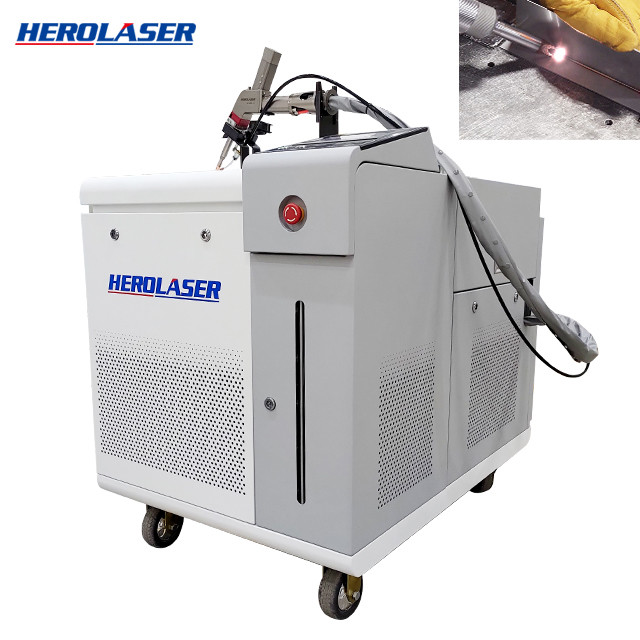

Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-WF-BP-HW1000
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden caseParameter Machine Parameters Size 650x300x621[mm](L×W×H) Weight 75[kg] Optical Parameters Output Power (Watt) 1500W Working Mode CW/Modulating Pulse Linear Array/Timing Output Power Adjusting Range (%) 1-100% Laser Wavelength (nm) 1075 ± 10 nm
Delivery Time 30-45 days
Payment Terms L/C, T/T, D/A, D/P, T/T
Supply Ability 120 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 47*26*50(inch) Weight 250kg
Output Power (Watt) 1500W Laser Wavelength 1070nm
Indicating Light Adjusting Range <1mW Cooling And Protection Gas Inert Gas
High Light

Modulation Manual Laser Welding Machine

,

1000W Manual Laser Welding Machine

,

1500 Watt Fiber Laser Welding Machine

Leave a Message
Product Description

Manual Laser Welding Machine With 1000 1500 2000 3000 Watts​



Parameter
No.
Item
Parameter
1
Name
Hand-held Laser Welding Machine
2
Welding Power
500W,800W,1000W,2000W,3000W
3
Laser wavelength
1070NM
4
Fiber Length
Normal:10M Max Support:15M
5
Operation Mode
Continuous / Modulation
6
Welding Speed
0~120 mm/s
7
Cooling Mode
Industrial Thermostatic Water Tank
8
Operating Ambient Temperature
15~35 ℃
9
Operating Ambient Humidity
< 70%(No condensation)
10
Welding Thickness
0.5-3mm
11
Welding Gap Requirements
≤0.5mm
12
Operating Voltage
AV220V
13
Machine Size(mm)
1050*670*1200
14
Machine Weight
240kg




Laser Head Welding Depth Data (Wobble Head)
Power
SS
Carbon Steel
Galvanized Plate
500W
0.5-0.8mm
0.5-0.8mm
0.5-0.8mm
800W
0.5-1.2mm
0.5-1.2mm
0.5-1.0mm
1000W
0.5-1.5mm
0.5-1.5mm
0.5-1.2mm
2000W
0.5-3mm
0.5-3mm
0.5-2.5mm





Products Description

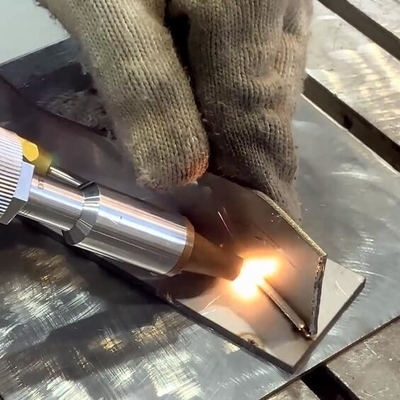

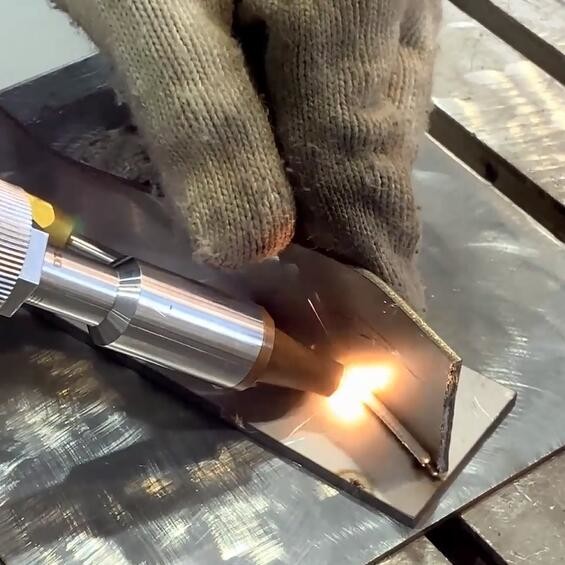

Herolaser Laser Handheld Welding Machine


A leader and navigator in the field of handheld laser welding

Hero-laser handheld laser welding machine adopts the latest generation of fiber laser and is equipped with independently developed wobble welding head to fill the gap of handheld welding in the laser equipment industry.
It has the advantages of simple operation, beautiful weld line, fast welding speed and no consumables.
It can weld thin stainless steel plate, iron plate,galvanized plate and other metal materials, which can perfectly replace the traditional argon arc welding Electric welding and other processes.
Hand held laser welding machine can be widely used in complex and irregular welding processes in cabinet, kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home andother industries.

Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 0Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 1
Characteristics

Independent R&D Wobble welding head


Independent R&D Wobble welding head, swing welding mode, laser spot width can be adjusted, welding fault tolerance is strong,make up for the disadvantage of laser welding light spot too small , expand the machining parts tolerance range and weld width, to get better weld forming.
Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 2

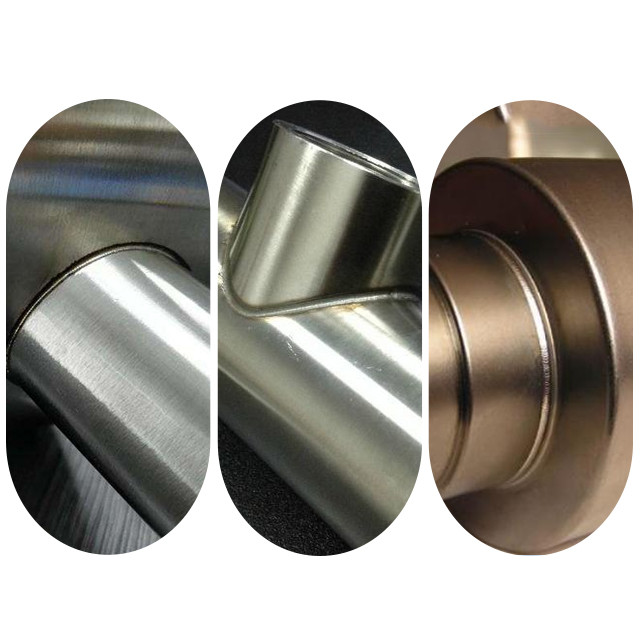

Technological Characteristics


The welding seams are smooth and beautiful, the pieces have no deformation, no welding scar, and the welding is firm enough to reduce the subsequent grinding process, saving time and cost.
Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 3

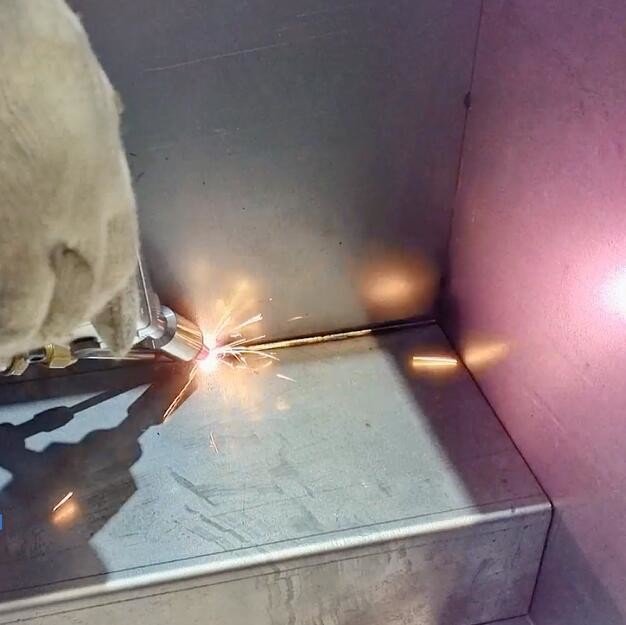

Advantages of handheld laser welding machine


Simple operation, can be easily operated with simple training; beautiful products can be welded one take without a master

WOBBLE handheld laser head, light and flexible, can weld any part of the workpiece, making the welding work more efficient,safe,energy-saving and environmentally friendly.
Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 4
Applicable Industry
Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 5

Domestic Appliance


Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 6

Air & Ship


Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 7

Auto Parts


Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 8

Machinery Manufacture


Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 9

Medical Equipment


Inert Gas Cooling Manual Laser Welding Machine 1000 1500 2000 3000 Watt 10

Elevator Manufacturing
