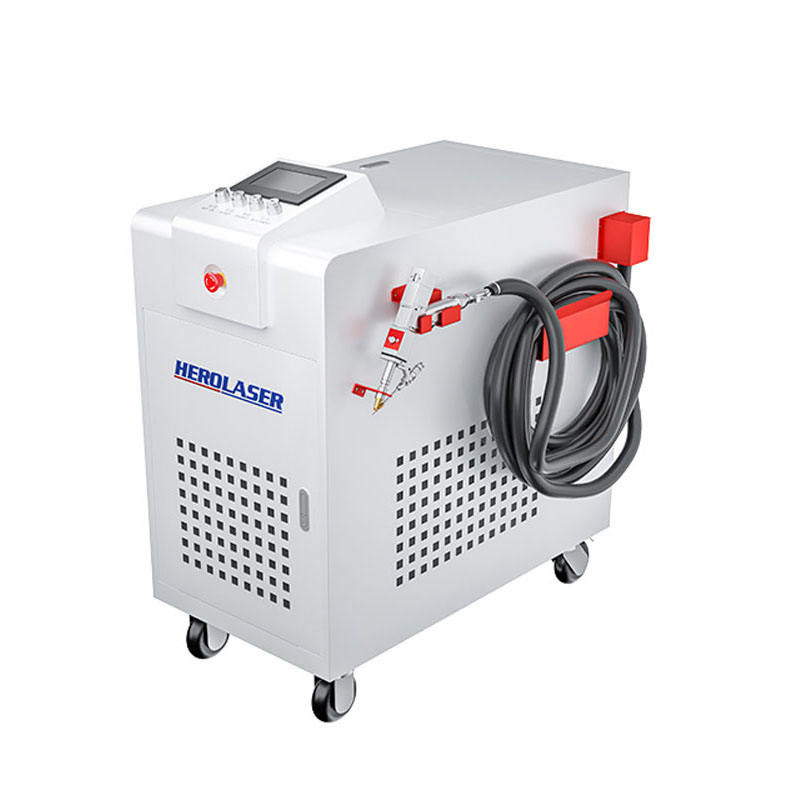

1000W 1500W 2000W 12000W Handheld Fiber Laser Welding Machine Equipment for industrial

Place of Origin China, Shenzhen
Brand Name Herolaser
Certification ISO9001, CE
Model Number ML-WF-S01-1500W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1.33*0.96*1.56m
Delivery Time 5-8 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Feeding Automatic Focus Length 150mm
Wavelength 1070nm Power Supply 220/380VAC ± 10% / 50/60HZ
Cooling Water Cooling Laser Type Pulse
After-sales Services Online Support, Video Technical Support Warranty 24 Months
High Light

CW Fiber Laser Welding Machine

,

12000W Fiber Laser Welding Machine

,

Handheld Fiber Laser Welder 1070nm

Leave a Message
Product Description

Portable Fiber Laser Welding Machine System 1000W 1500W 2000W 12000W


Product introduction:


Herolaser is the first and leading manufacturer in China to develop and produce hand-held laser welding machine. Our handheld laser welding machines use the latest generation of laser sources, including continuous wave/pulse output modes. Suitable for welding stainless steel plate, carbon steel plate, galvanized plate and aluminum plate. Swing welding technology, adjustable focal length, operation with the highest process consistency, ensuring high quality products for the laser industry. Laser welding is a welding technique that uses lasers to join metals together. The beam provides a concentrated heat source, allowing for narrow, deep welding and high welding rates.



Laser processing has proven to be a high-quality, low-cost manufacturing process that requires a minimum of tools. Fewer dies/fixtures make laser machining ideal for prototyping. The Herolaser handheld laser welder can weld up to 10 times faster than traditional TIG welders. Safety design features (work lock, laser enable button and safety clip) provide maximum operator protection. Easy to operate and provides consistent, high-quality results across a wide range of materials and thicknesses, minimizing heat affected areas to ensure an aesthetically pleasing finish. Low power consumption, low noise operation, no special temperature condition requirements, different welding, and high melting point metals are well known advantages of laser welding machines. The equipment adopts integrated design, compact size, suitable for various working environments. Less skilled operators can produce the same results.


Laser welding is a procedure in which metals or thermoplastics are connected to create a weld using a laser gleam. Due to the concentrated heat source, laser welding can be performed at high welding velocities in meters per minute in thin materials.


Machine features:



  1. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
  2. Easy to operate, no need welding work license, unskilled operator can also weld products beautifully.
  3. No effect for etch after welding , low oxidation rate ,the color of the processing parts is intact .
  4. The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.
  5. The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welding operators a year.
  6. Laser welding consumes less material and has a long-life, Safer and more environmentally friendly.

Components of Laser Welding Systems



It comprises a motored guide, laser optics, and a worktable if need be. The half-finished products that you’re welding have to be fastened securely to enable an accurate joining.



The fastening and insertion of the immobile laser gleam welding systems can be automatic or motorized.



Apart from the accurately functioning servos of the robot hand and the welding optics, the regulation system is a crucial part in this welding system. It helps steer the arm to the designed spots and controls the laser gleam’s intensity and duration.



A cutting system is a perfect addition to a laser welding system. The perfect shapes cut through this system offer the precise geometry that a laser gleam welding machine may utilize to achieve optimal results.


Technical parameters:

No. Item ML-WF-1000W ML-WF-1500W ML-WF-2000W
1 Laser Power 1000W 1500W 2000W
2 laser Wavelength 1070 NM 1070 NM 1070 NM
3 Fiber Cable length 10 meters 10 meters 10 meters
4 Cooling method Water Water Water
5 Voltage 220V 220V 380V
6 Power consumption 5KW 7KW 9KW
7 Frequency 50/60 HZ 50/60 HZ 50/60 HZ
8 Currency 23A 32A 23A
9 Laser gun motor wobble motor wobble motor wobble
10 Focus length 150mm 150mm 150mm
11 Cryogenic water flow 70 L/min 70 L/min 83 L/min


Fiber Laser welding VS Argon Arc welding:





Laser welding

Argon arc welding

Welding scar/seam

Smooth, no welding scar

welding scar, color changed, need polishing work

Work piece deformation

N/A

Always have

Consumable items

Protective gas

Welding wire, protective gas

Operation

Mastering easily

Difficult, Experienced masters teaching needed

Efficiency

High

Low

Cost

Low

High






1000W 1500W 2000W 12000W Handheld Fiber Laser Welding Machine Equipment for industrial 0



Application:



Ambry industry, railings of stairs and elevator, shelves, oven, stainless steel guardrail, distribution box, stainless steel home supplies etc.

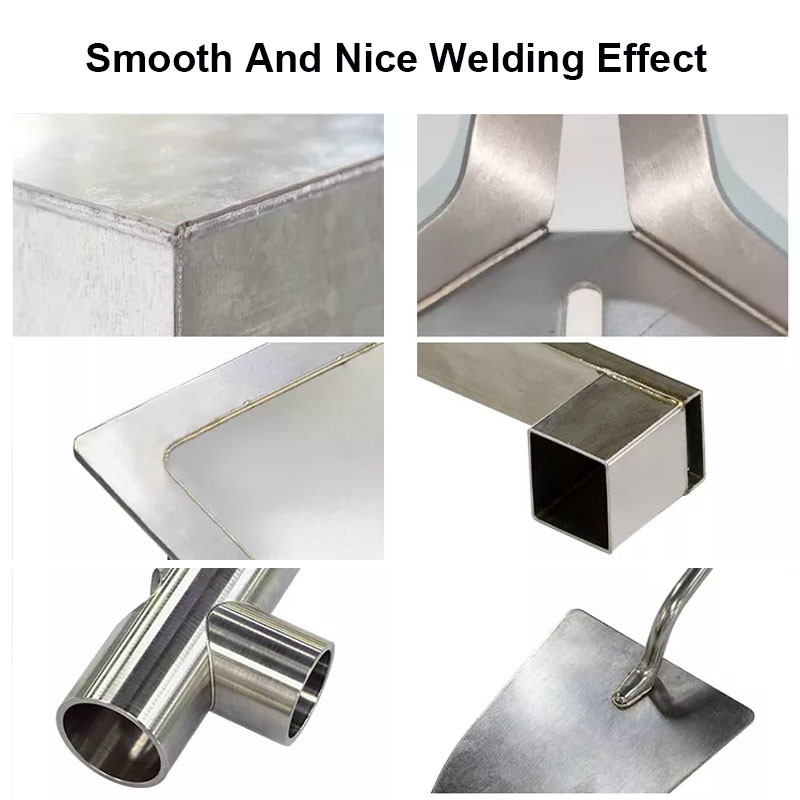

Samples for reference:

1000W 1500W 2000W 12000W Handheld Fiber Laser Welding Machine Equipment for industrial 1




























































Model Features



One benefit of thermal conduction welding is that the last weld comes out esthetically and highly smooth. For thermal conduction welding, it uses



a low-power laser that ranges from 500 watts.



F&Q:

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

1000W 1500W 2000W 12000W Handheld Fiber Laser Welding Machine Equipment for industrial 2
