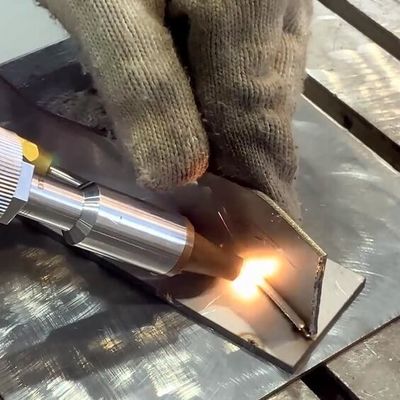

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal

  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
  • Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal
Place of Origin China, Shenzhen
Brand Name Purple Horn
Certification ISO9001, FDA
Model Number ML-MN-1500
Minimum Order Quantity 1 Set
Price USD 4299~8600/Set
Packaging Details Wooden case package
Delivery Time 14 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 200 sets/month
Product Details
Welding Thickness 0.1-5mm Laser Wavelength 1064nm-1074nm
Technical Continuous/Pulse Wave Laser Welding Depth 0.5 - 2.5mm
Welding Gap ≤0.5mm Welding Speed 0-120mm/s
Application Material Metal Cooling Method Water/Air Cooliing
Control Manual/Automatic Dimension 1000mm*600mm*1700mm
Highlight

HandHeld Laser Welding Machine 1500w

,

1064nm Handheld Fiber Laser Welder

,

1000w Metal Handheld Fiber Laser Welder
Leave a Message
Product Description

Product Description



Hand-held laser welding machines consist of a laser, a chiller, a handheld swing welding head, a laser control system, and an automatic wire feeder. The product fully considers the applicability of the welding process and the comfort of long-term use , and it has a mouth touch to the workpiece The light-emitting safety lock prevents accidental injury to others. The drawer-type protective lens installation method is adopted to facilitate the customer to replace the lens.



We have 4 kinds of machines :

1. Laser Marking/Engraving Machine;

2. Laser Welding Machine;

3. Laser Cutting Machine;

4. Laser Cleaning Machine.



Model ML-500w
Average laser power 500w
Max laser power 500w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 2mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 2KW
Water pressure protection 0.025MPa
Cooling water temperature 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1100mm x 900mm x 1200mm
Weight 320kg
Cooling Way Water cooling
Laser Type Pulse



Machine Features for handheld laser welding machine



1. Pure fiber laser source, top laser source brand, fast speed, strong beam.

2. High efficiency ,energy saving ,environment friendly and more safety operation.

3. The welding effect is good, the continuous emission laser mode is adopted, the welding point is uniform, the surface of the welding seam is very smooth and clean, and there is no need for secondary processing after welding.

4. Easy to operate and no need high experienced operators like arc welding, save you expensive technical labor cost.

5. No consumables, maintenance-free.

6. Welding speed: 3-5 m/min, which is 2-10 times the welding speed of manual arc welding.

7. A variety of hand-held welding heads are available to meet various requirements such as metal parts, internal welding, right-angle welding, narrow-side welding, large spot welding, and so on.

8. Minimal heat input, small heat-affected zone, reduce welding distortion caused by heat conduction.

9. Workers are highly efficient and will not feel tired after long welding. No UV light ,no ozone when operating, keep operators health.

10. Using a handheld laser welding gun, the welder can work comfortably.

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 0















                         Laser Welding                                                          Traditional welding

Item Traditional welding Laser welding
Heat effect Very high Low
Welding deformation Big Small
Welding strength Good Excellent
Post-processing Polish No or Rarely polished
Welding speed Common fast
Applicable materials Stainless steel,carbon steel,AL, galvanized sheet Stainless steel,carbon steel,AL, galvanized sheet
Consumables Many Less
Operation difficulty Difficult Simple
Operator safety dangerous Safe
Environmental Polluted Environmental
Welding fault tolerance Good Good
Wobble welding NO Yes
Adjusted beam width NO Yes
Welding quality Bad Excellent



Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 1



Gun Features for handheld laser welding machine



1) Wobble technology, swing welding, welding spot can be adjusted, Make up for the small defect of traditional welding spot, Strong fault tolerance, Increased workpiece tolerance range and weld width

2) Automatic wire feeding design, Stable and continuous wire feeding makes welding seam more beautiful

3) Replaceable copper nozzles, Can meet various welding needs and various shapes.

4) Water cooling design for gun, protective gas design for workpiece, And temperature detection system

5) Except on/off button on machine, But also on/off button on welding gun, More safety for user

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 2

Applied to various metal material, such as stainless steel carbon steel brass copper aluminum aluminum alloy iron

(Purple Horn CE ROHS Welding Device for Butt Fusion Automatic Wire Feeding Portable Laser Welding Machine)


Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 3

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 4

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 5



Applications



Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 6 Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 7



Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 8 Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 9





Certificates

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 10



Company Introduction



Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 11



ABOUT Purple Horn



Shenzhen Purple Horn Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the research and development, production and marketing of laser equipment group of companies, has formed a complete series of industrial laser equipment supply platform.


With a team of 200 people professional technical engineers, Own more than 200 patents, rich management experience, clear development direction to ensure our rapid growth in the rapid development of the laser industry. We have established branches all over China, Such as Jiangsu, Zhejiang,Shandong,Chongqing. And we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine. Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

We hope to bring you the best quality and service, your recognition is our greatest support. welding machine,other welding equipment, laser welding machine,laser welding machine price,laser welding,other welding,welding robot,portable welding machine,handheld laser welding machine,welding machine price,portable laser welding machine,fiber laser welding machine,aluminium welding machine,welding machine portable,plastic welding machine,mini welding machine,lazer welding machine,fiber welding machine,china laser welding,laser welding gun,stainless steel laser welding machine,laser cold welding machine,or laser welding machine,welding equipment laser welding machine,1000w laser welding machine,automatic welding machine laser,laser welding portable,1kw handheld fiber laser welding machine,fiber cable welding machine,fiber laser cleaning welding machine,handheld fiber laser welding,fiber optic cable welding machine,laser welding machine fiber,soldering machine.

Packing & Delivery
Handheld Fiber Laser Welding Machine 1000w 1500w 2000w Welder for Metal 12

After-sales Services

1. 2 year guarantee for laser source(people damaged are charged)

2. Full technical support / by e-mail, call and video

3. Spare parts supply.

4. Free online training installation and operation

5. 12 hours quick feedback & after-sales services

6. ODM/OEM service

FAQ
Q1:What products does Purple Horn produce?
A1:Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Marking Machine And New Energy

Q1:Can I visit the factory?
A1:Welcome to visit us any time

Q1:Can I make my logo on device
A1:Yes, We also supply ODM/OEM service

Q1:How about your pre-sales service?
A1:① Free pre-sales 7*24 hours rapid response services / cousulting
② Free sample testing / inspection
③ Free design of fixtures as customers / distributor required
④ Strict quality control for our products
⑤ Quick delivery time

Q1:How will you guarantee after-sales services?
A1:We offer two years warranty for laser source, one year for the machine.

Q1:What are the payment methods can you accept?
A1:T/T, LC, CAD, OA, Trade Insurance, Alibabapay, Also accept bank acceptances within 6 months
