FDA Approval 0.1mm Laser Mould Welding Machine For Mold Repairing

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M02-200W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 Days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Source YAG Laser Source Made By Herolaser Factory Laser Power Made By Herolaser Factory
Xenon Lamp Made In China CCD Camera Made In China
Touch Screen Made In China Protective Lens Singapore
Total Power Made In China Diameter Of Welding Wire 0.1mm-0.5mm
High Light

FDA laser mould welding machine

,

0.1mm laser mould welding machine

,

FDA laser welding equipment

Leave a Message
Product Description

Filler Wire 0.1mm-0.5mm Mould Laser Welding Machine For Mould Mold Repairing



Product introduction:



Laser mold welding machine fuse special welding wire damaged parts of the mold by laser instantaneous high heat energy, firmly welded to the original substrate, welding position will be by electric spark surface smooth, grinding and other processes method. After welding, thereby repair the mold. It can be used for precision repair of mold bubbles, cracks, collapses, wear and other small parts. Meichuang mold laser welding machine design beautiful, easy to move. To meet the repair needs of various mold materials, easy to operate. High hardness after welding, no crack and sand hole.



Features:



Welding point’s diameter only 0.1-0.5mm, with high precision and accuracy;
Wavelength of YAG Laser is 1064nm which is less harmful to human skin compare to other laser
Small heating scope ensures distortion free and bubble free work pieces
Compensating the deficiency of traditional argon-arc welding and cold welding in repairing the fine surfaces; low oxidation effects and color change free for work pieces;
Welding operations can be done within the small spaces or deep cavity areas, no damage will be caused to the surrounding walls. No distortion on the mold nor dents around the weld pool can occur.
Edge won’t be damaged by burning when fine parts are repaired.
Argon gas protection ensures the repairing parts and base materials won’t be burned nor oxidized.
Joystick control, movable work piece, fitting and curve;
Operations monitored by microscope, ensuring good vision of fine parts;
Imported welding wires, fitting different kinds of imported mold materials, Polishing and texturing can also be realized.
Processing cost can be greatly saved in terms of materials, labor and time consuming.



Technical Specification:



Model MT-W200YM
Laser Power 200W
Laser Type YAG
Wavelength 1064nm
Max. Pulse Energy 90J
Max. Welding Thickness 0.1-0.8mm
Gross Power ≤7KW
Laser Welding Wire Dia. Ф0.2-Φ0.4mm
Voltage 220V±10% / 50Hz / 30A(380v)
Pulse Width 0.2-20ms
Frequency 0.5-20Hz
Spot Adjustable Range 0.2-2mm
Working Table 3D Manual
Positioning Microscope
Lifting Distance Fixed / 300mm
Laser Axial Rotation Fixed / 360°
Horizontal Direction Fixed/Y Axis Can Move /XY Motorizd



Applicable materials:


Mainly used for the repair of large and medium-sized molds, suitable for S136, SKD-11, NAK80, 718, 738, P20, W302 and other die steel, carbon steel, ordinary alloy steel, stainless steel, plastic molds, casting molds, forging molds, stamping molds, die casting molds, etc.



Applicable industry:


Widely used in mobile phones, digital products, automobiles, motorcycles and other mold manufacturing and molding industry.



Machine main parts:



FDA Approval 0.1mm Laser Mould Welding Machine For Mold Repairing 0

FDA Approval 0.1mm Laser Mould Welding Machine For Mold Repairing 1



FAQ:



1. How is the payment?

  • 30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

  • Ship in 7 days after 100% payment;
  • Plywood box packaging

3. How will you guarantee aftersales services?

  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online

4. How about your presales service?

  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

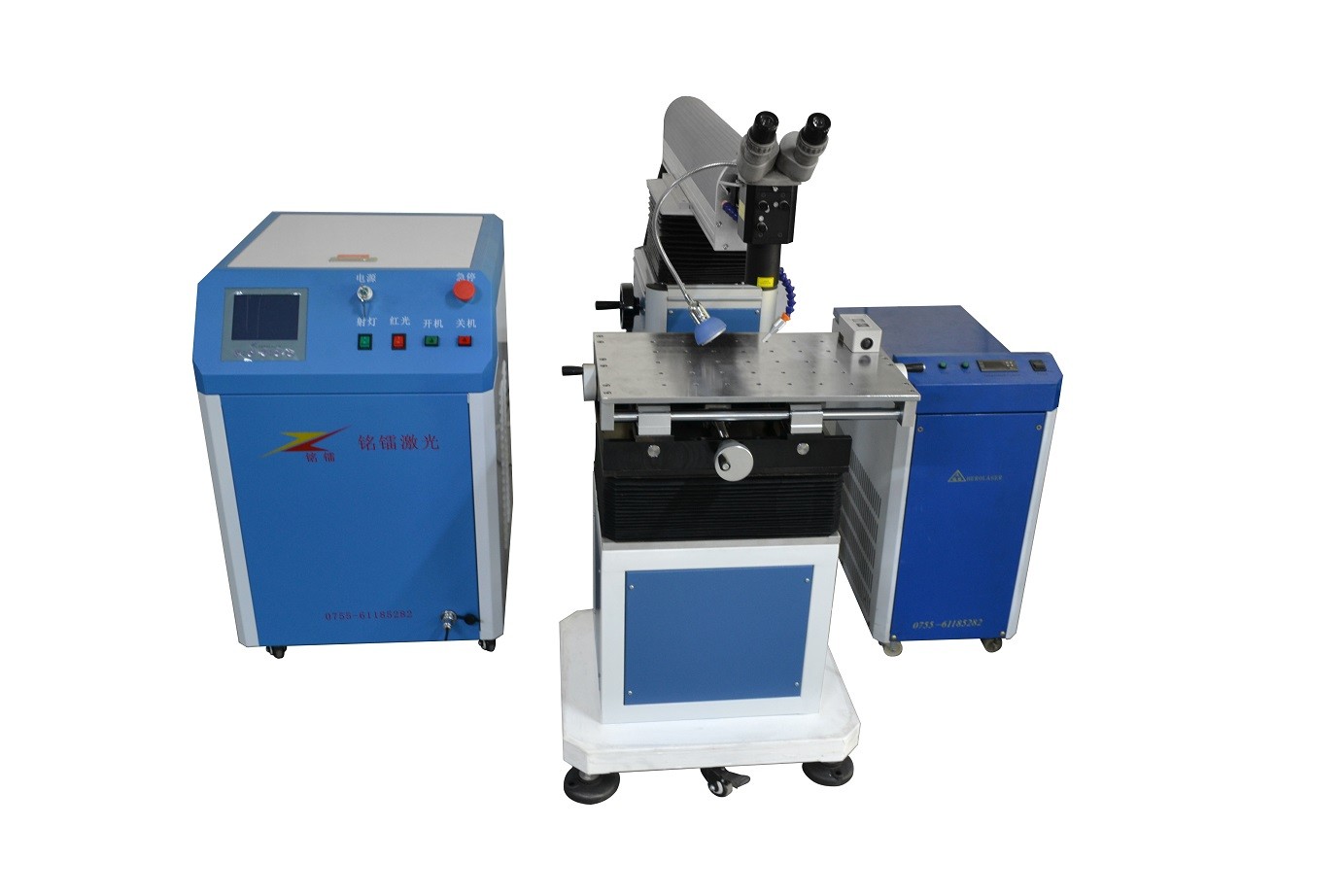

FDA Approval 0.1mm Laser Mould Welding Machine For Mold Repairing 2
