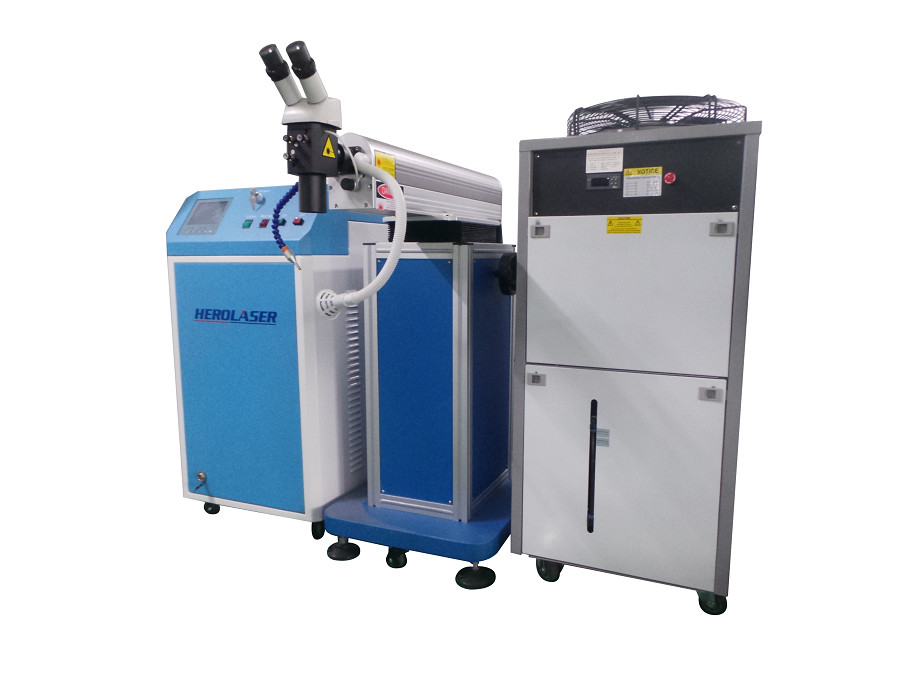

CE Flexible Fast Mould Laser Welding Machine For Die Repairing

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M01-200W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 Days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pulse Width 0.1-20ms Laser Frequency 0-50Hz
Laser Sopt Range 0.2-1.5mm Total Power 4KW
Power Supply 220V Cooling Water Temperature ≤ 35 Degrees
Water Pressure Protection ≤ 0.025MPa Laser Type Pulse
High Light

CE Mould Laser Welding Machine

,

Flexible Fast Mould Laser Welding Machine

,

CE laser beam welding machine

Leave a Message
Product Description

Laser Mould Welding Machine For Die Repairing 200W Laser Fixing Mould Welding Machine



Product introduction:



This is a fiber transmitted pulse laser. Fiber optic transmission welder greatly improves the adaptive flexibility of laser welding.

Laser transmission through optical fiber, so that the laser head away from the welding machine, laser transmission is flexible. As a result, lasers can process products that are challenging to other tools.



Features:



Laser welding is to irradiate a high energy density laser beam on two parts of the material, so that the local heating melt, and then cooling and solidification into one. Compared with traditional welding technology, laser welding has the following advantages:
1. Small heat-affected zone of laser repair welding will not lead to deformation of precision die, large welding depth, strong welding, sufficient melting, no repair marks, no depression in the joint of molten pool melt bump and matrix.
2. With a special microscope observation system for cross cursor, the magnification can be adjusted to achieve precise alignment.



Technical details:



Model HY-M200W/M400W
Maximum Laser Power 200W//400W
The Laser Wavelength 1.06um
Laser Welding Frenquency <=50HZ/100HZ
Laser Welding Depth 2mm/3mm
Positioning System Microscope or CCD
Laser Welding Wire 0.2-0.8
Electricity Demand 220V/50HZ/40A, 380V/50HZ/40A
Cooling Mode Water Cooling
The Whole Machine Consumes Power <=6KW/8KW
The Whole Machine Size WLH (110*60*1250cm)



Consumables for reference:



1. Xenon lamps

CE Flexible Fast Mould Laser Welding Machine For Die Repairing 0

2. Protective lens

CE Flexible Fast Mould Laser Welding Machine For Die Repairing 1



Optional parts:



 1. Wires: 0.15-0.6mm

CE Flexible Fast Mould Laser Welding Machine For Die Repairing 2



2. Magnetic ball jig

CE Flexible Fast Mould Laser Welding Machine For Die Repairing 3



3. Wire feeding pen

CE Flexible Fast Mould Laser Welding Machine For Die Repairing 4



FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.



CE Flexible Fast Mould Laser Welding Machine For Die Repairing 5
