No stomata 20ms Mould Laser Welding Machine For Stainless Steel

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M01-400W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Wavelength 1064nm Pulse Width 0.1-20ms
Laser Frequency 0-50Hz Laser Sopt Range 0.2-1.5mm
Cooling Mode Water Cooled Total Power 4KW
Cooling Water Temperature ≤ 35 Degrees Water Pressure Protection ≤ 0.025MPa
High Light

20ms Mould Laser Welding Machine

,

No stomata Mould Laser Welding Machine

,

20ms laser welding machine for stainless steel

Leave a Message
Product Description

Fiber Laser Mould Repairing Welding Machine 400W Laser Equipment Die Fixing



Product introdution:



This series of laser welding machines produced by our company is a special model specially tailored for the mold industry by our company. This machine is specially used to replace the traditional argon welding machine for product welding.

The key components of the machine are all imported products from abroad. The software operation interface adopts a large-screen LCD screen to display the full Chinese interface. The interface is simple and clear, and the operator is easy to learn and use. Multiple pre-storage operation modes, self-programming, permanent memory function, applicable to various materials.

The heat-affected zone is small and will not cause deformation of precision molds. The welding depth is large and the welding is firm. Fully melted, leaving no traces of repair. There is no depression in the joint between the convex part of the molten material in the bath and the substrate.



Features and advantages:



  • High accuracy, the welding spot diameter is 0.2mm-0.5mm;
  • Little affect area, no distortion of the processing parts.
  • No effect for etch after welding, low oxidation rate, the color of the processing parts is intact.
  • No stomata or sand hole disappeared after welding.
  • Can process at the welding point, especially applicable to repairing mound requiring polishing.
  • The processing parts can reach 50-60 hrc.

Techncal specification:



Model ML-400w
Average laser power 400w
Max laser power 400w
Max energy of single pulse 75J
Laser wavelength 1064nm
Laser weld depth ≤ 2mm
Pulse width 0.3-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.4mm
Power Supply 220VAC / 380VAC ± 10% / 50-60HZ
Power Consumption ≤4KW
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1100mm x 900mm x 1200mm
Weight ≤200kg
Cooling Way Water cooling
Laser Type Pulse

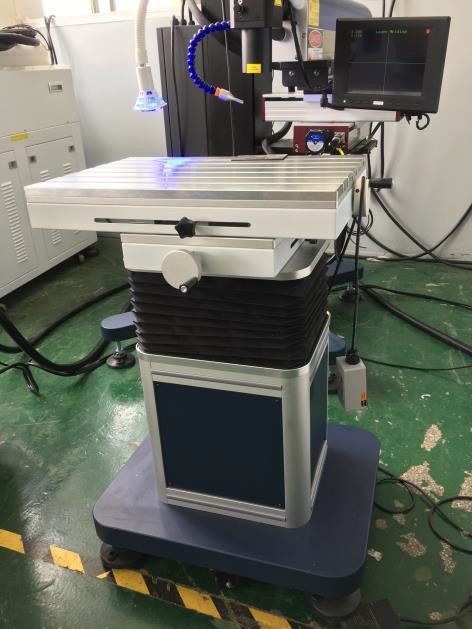

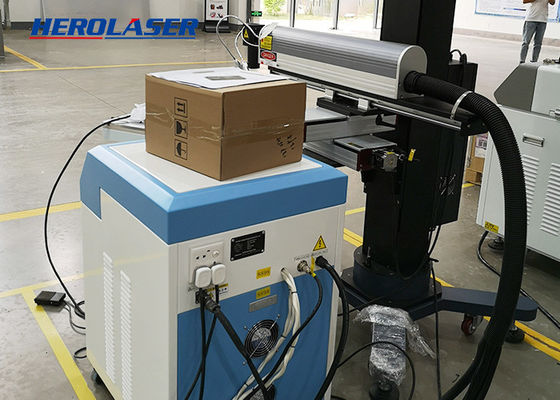

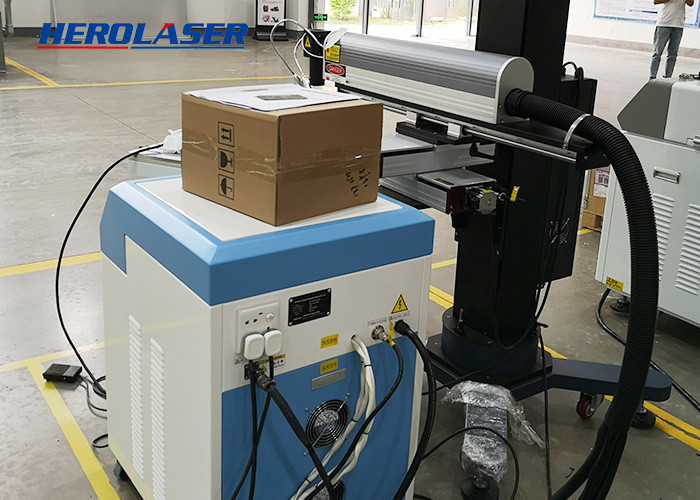

Machine main parts:



No stomata 20ms Mould Laser Welding Machine For Stainless Steel 0



No stomata 20ms Mould Laser Welding Machine For Stainless Steel 1



Applicable Material:

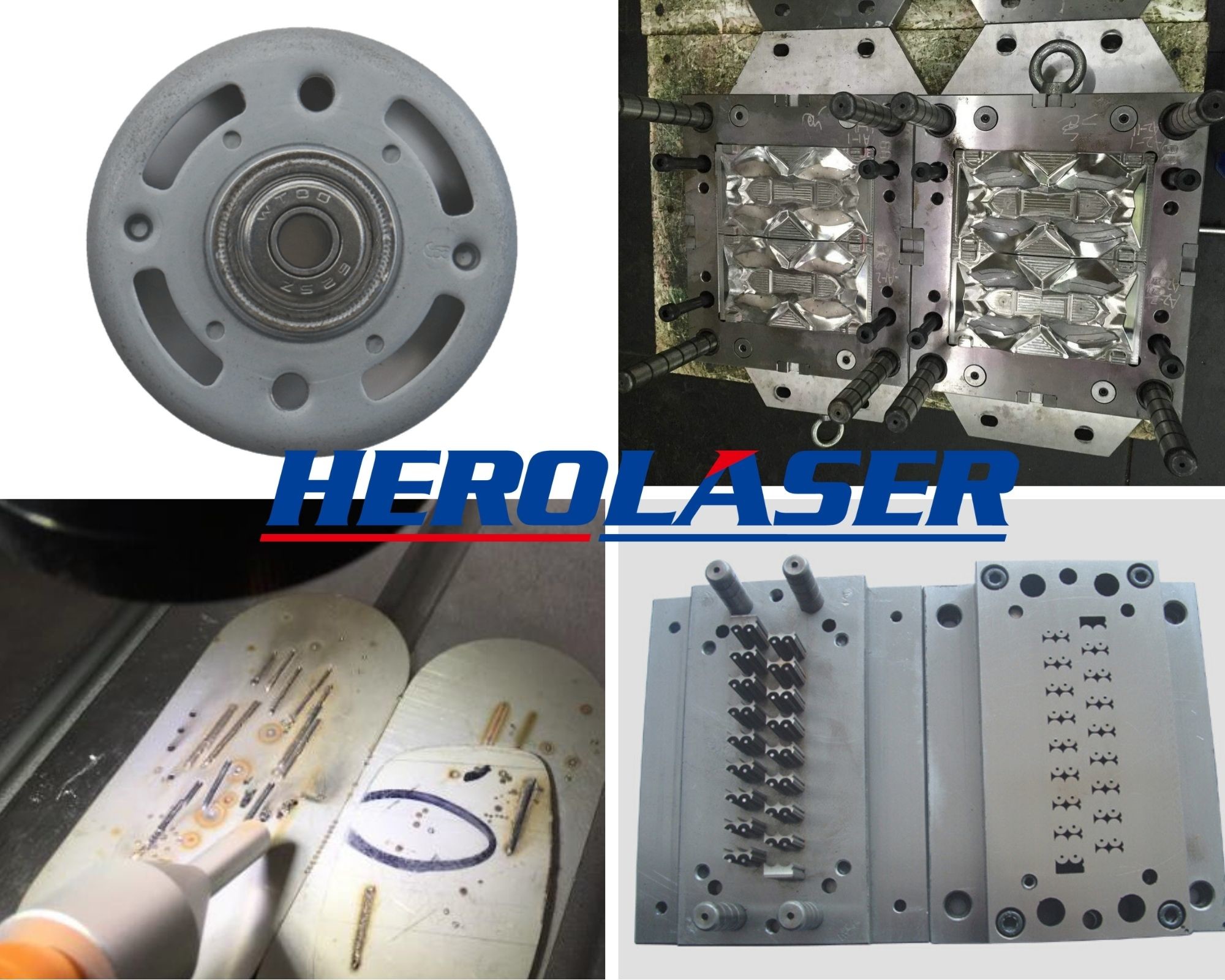

It is mainly used for repair of large and medium-sized molds, suitable for S136, SKD-11, NAK80, 718, 738, P20, W302 and other kinds of mold steel, carbon steel, common alloy steel, stainless steel, plastic mold, casting mold, forging mold, stamping mold, die-casting mold, etc.



Applicable Industry:


Widely used in mobile phones, digital products, automobiles, motorcycles and other mold manufacturing and molding industries.



No stomata 20ms Mould Laser Welding Machine For Stainless Steel 2



FAQ:

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
