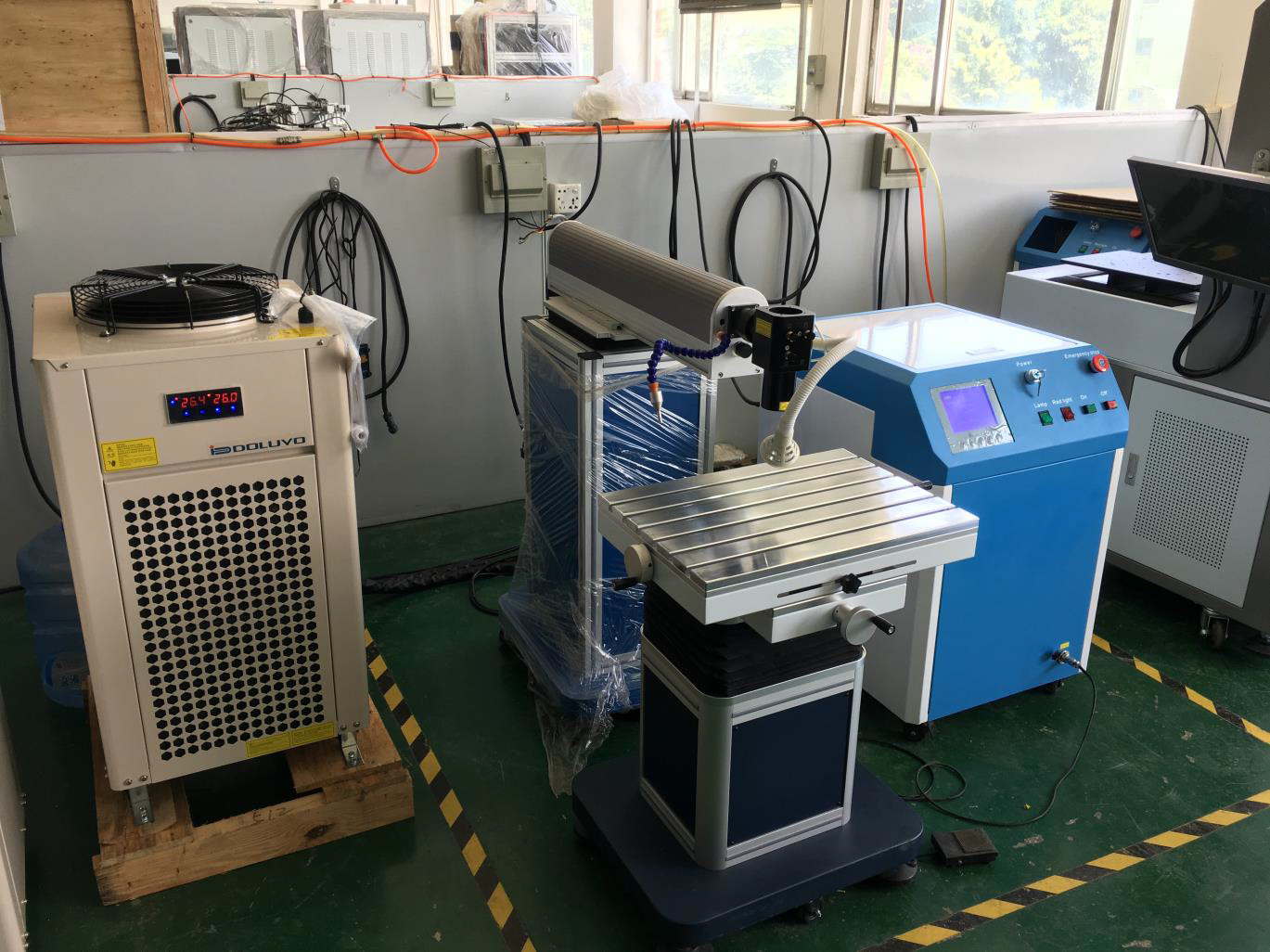

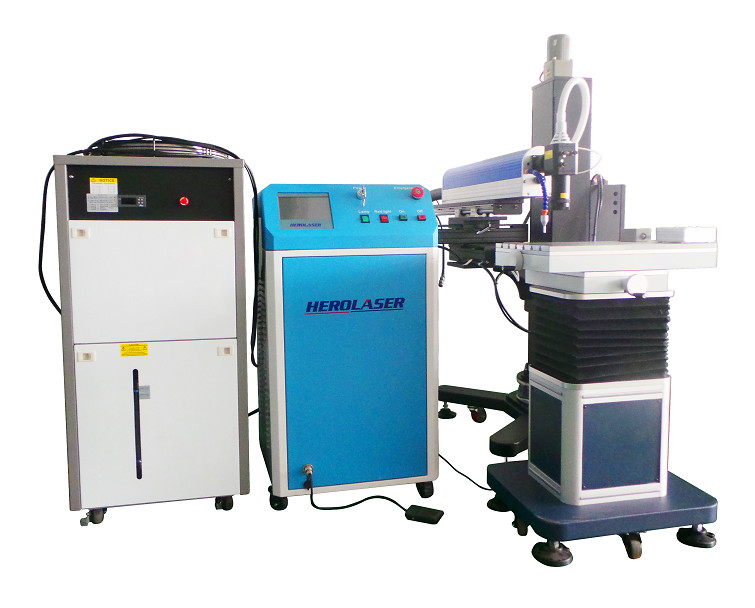

200W Cracks Repairing Mould Laser Welding Machine Water Cooling

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M02-400W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Laser Power 400W Laser Wavelength 1064nm
Pulse Width 0.1-20ms Laser Frequency 0-50Hz
Laser Sopt Range 0.2-1.5mm Cooling Mode Water Cooled
Total Power 4KW Power Supply 220V
Cooling Water Temperature ≤ 35 Degrees Water Pressure Protection ≤ 0.025MPa
High Light

200W Mould Laser Welding Machine

,

Cracks Repairing Mould Laser Welding Machine

,

200W laser welding equipment

Leave a Message
Product Description

Laser Repairing Machine 200W Repair Cracks/Collapsed Horn/Touched Edge/Damaged Sealing Side



Product introduction:



Laser welding machine system (laser mold welding machine) is specially designed for the mold industry, used for precision mold repair, such as digital products, mobile phones, toys, cars, motorcycles mold manufacturing, as well as the molding industry. Through the maintenance of the mould, the mould can be reused, saving the production cost and greatly improving the work efficiency. The technology can also be used to modify the design or dimensions of the die to shorten the development cycle.



Features of the machine:



  1. High precision, solder joint diameter is only 0.2mm-0.5mm
  2. Small impact area, no deformation of the processed parts.
  3. After welding, it has no effect on corrosion, low oxidation rate, and the color of processed parts is intact.
  4. No pores and sand holes disappear after welding.
  5. It can be processed in solder joint, especially suitable for mound repair that needs polishing.
  6. Machined parts can reach 50-60 Rockwell hardness.



Technical details:



Model ML-WY-M02-200W/400W
Maximum Laser Power 200W//400W
The Laser Wavelength 1.06um
Laser Welding Frenquency <=50HZ/100HZ
Laser Welding Depth 2mm/3mm
Positioning System Microscope or CCD
Laser Welding Wire 0.2-0.8
Electricity Demand 220V/50HZ/40A, 380V/50HZ/40A
Cooling Mode Water Cooling
The Whole Machine Consumes Power <=6KW/8KW
The Whole Machine Size WLH (110*60*1250cm)



Field of application:



It is applicable to make patch welding on large, middle, small size plastic mold or die-casting mold used in industries like shell making industry, automobile industry, rubber industry and home appliance industry. This model is the first choice for processing services provider to proceed site processing for customer.



Machine consumable parts:



1. Xenon lamps

200W Cracks Repairing Mould Laser Welding Machine Water Cooling 0



2. Protective lens

200W Cracks Repairing Mould Laser Welding Machine Water Cooling 1



FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

  • Ship in 7 days after 100% payment;
  • Plywood box packaging

3. How will you guarantee aftersales services?

  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.



200W Cracks Repairing Mould Laser Welding Machine Water Cooling 2
