1064nm Anti Mould Deformation Automatic Laser Welding Machine Durable

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M02-400W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max. Laser Power 400W Laser Wavelength 1064nm
Laser Frequency 0-50Hz Laser Sopt Range 0.2-1.5mm
Cooling Mode Water Cooled Power Supply 220V
Cooling Water Temperature ≤ 35 Degrees Water Pressure Protection ≤ 0.025MPa
High Light

Anti Mould Deformation Automatic Laser Welding Machine

,

1064nm automatic laser welding machine

,

1064nm mold laser welding machine

Leave a Message
Product Description

Advanced Mould Mold Repair Laser Welding Machine Avoid Mould Deformation



Product introduction:



The laser welder system (laser mould welder) is specially designed for the mould industry and used in repairing of precision moulds, such as mould manufacture for digital products, mobile phone, toy, automobile and motorcycle, and molding industry. Through the repairing of moulds, it is possible to reuse the moulds, save the production cost and improve the working efficiency significantly. This technology can also be used to modify the design or size of moulds to reduce the development period.



Features:



Laser welding is a process in which a laser beam of high energy density is irradiated on two parts of the material, causing local heating to melt, and then cooling to solidify into a whole. Compared with traditional welding technology, laser welding has the following advantages:

  • The heat affected zone of laser repair welding is small, which will not lead to the deformation of precision mold. The welding depth is large, the welding intensity is large, the melting is sufficient, there is no repair trace, and there is no depression at the connection between the melting point of molten pool and the matrix.
  • Special cross cursor microscope observation system, magnification can be adjusted to achieve accurate alignment.



Technical Parameters:





Model ML-WY-M02-200W/400W
Maximum Laser Power 200W//400W
The Laser Wavelength 1.06um
Laser Welding Frenquency <=50HZ/100HZ
Laser Welding Depth 2mm/3mm
Positioning System Microscope or CCD
Laser Welding Wire 0.2-0.8
Electricity Demand 220V/50HZ/40A, 380V/50HZ/40A
Cooling Mode Water Cooling
The Whole Machine Consumes Power <=6KW/8KW
The Whole Machine Size WLH (110*60*1250cm)





Applicable materials and fields:



Welding on the precision injection, die-casting, mould repairing, metal ornament and accessories, stamping parts, lost wax casting, aluminum casting, sand hole repairing on stainless steel etc.

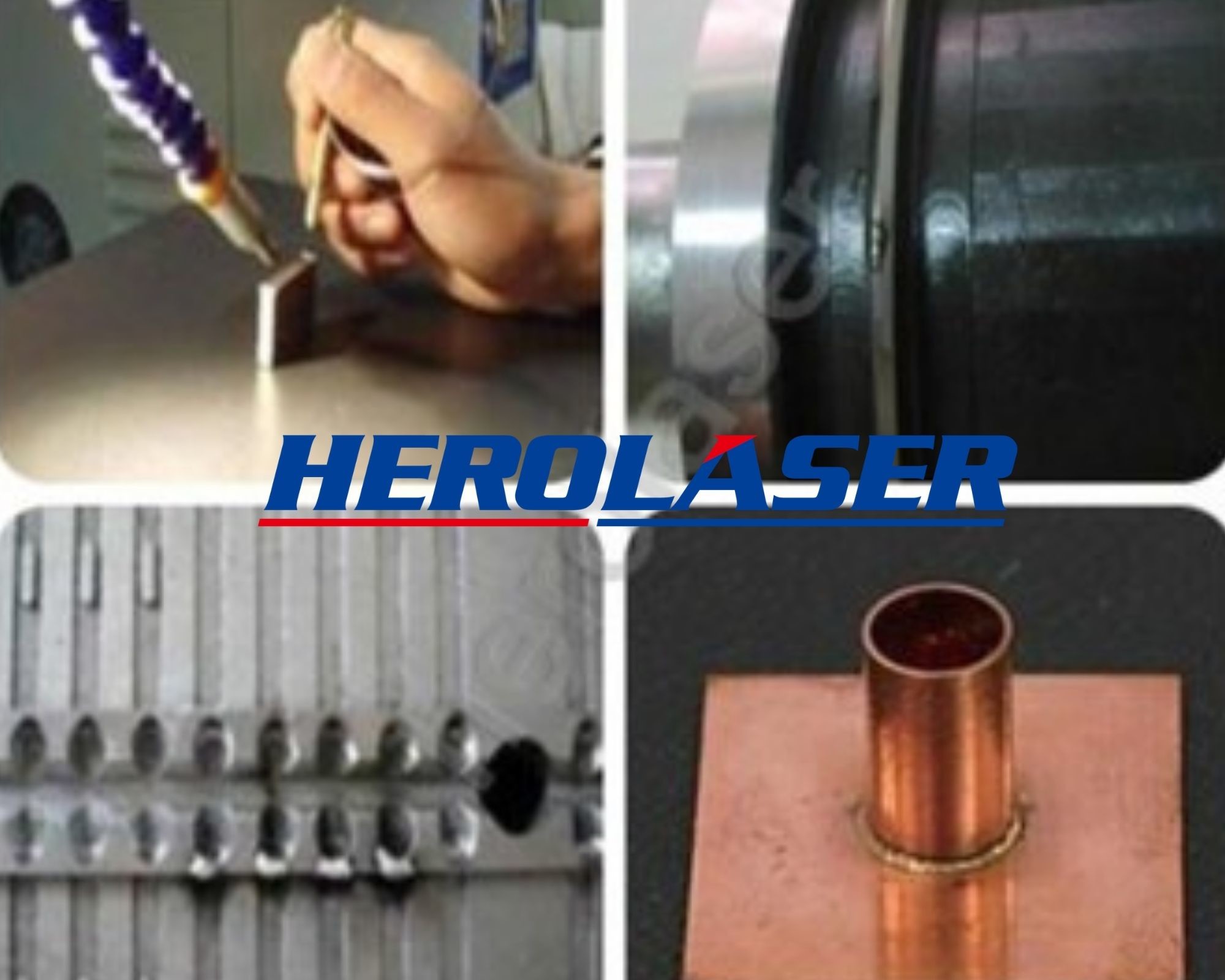

Samples for reference:



1064nm Anti Mould Deformation Automatic Laser Welding Machine Durable 0



FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
