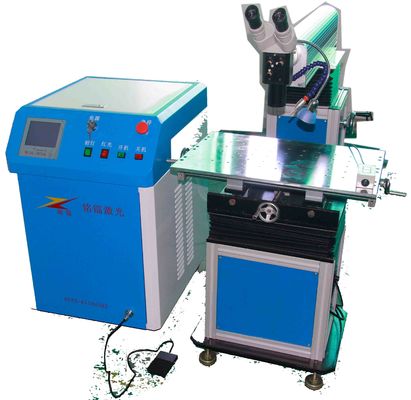

Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-MR-200
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 Days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Max. Laser Power 200W Laser Wavelength 1064nm
Pulse Width 0.1-20ms Laser Frequency 0-50Hz
Laser Sopt Range 0.2-1.5mm Cooling Mode Water Cooled
Total Power 4KW Power Supply 220V
High Light

220V LCD screen Mould Laser Welding Machine


FDA 220V Mould Laser Welding Machine


FDA 220V Manual Laser Welding Machine

Leave a Message
Product Description

Manual Laser Welding Machine For Mould Repairing 200W Crane Design Die Laser Welder


Product introdution:


This series of laser welding machines produced by our company is a special model specially tailored for the mold industry by our company. This machine is specially used to replace the traditional argon welding machine for product welding.The key components of the machine are all imported products from abroad. The software operation interface adopts a large-screen LCD screen to display the full Chinese interface. The interface is simple and clear, and the operator is easy to learn and use. Multiple pre-storage operation modes, self-programming, permanent memory function, applicable to various materials.The heat-affected zone is small and will not cause deformation of precision molds. The welding depth is large and the welding is firm. Fully melted, leaving no traces of repair. There is no depression in the joint between the convex part of the molten material in the bath and the substrate.




  • Can repair cracks, chipped corners, touch edges and depleted sealing edges
  • Can be welded on hard materials (~HRC60)
  • High accuracy, laser welding spot diameter is only 0.3mm~2.0mm
  • The heated area is small and the processed parts will not be deformed
  • Low oxidation rate, the workpiece will not change color
  • No porosity or trachoma after welding
  • The welding part can be processed, especially suitable for mold repairs with polishing requirements
  • After welding, the workpiece can reach 50~60 Rockwell hardness
  • After welding, the pattern can be etched without affecting the effect


Technical details:


Item Name Parameter
1 Max. laser power 200W 400W
2 Laser wavelength 1064NM
3 Pulse width 0.1- 20MS
4 Laser frequency 0- 50HZ
5 Laser spot range 0.2- 1.5MM
6 Cooling mode Water cooled
7 Total power 4KW 9KW
8 Power supply 220V 380V



Applicable materials and fields:


Repair cracks, collapsed horn, touched edge and damaged sealing side, welding on horniness materials.


Samples for reference:


Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type 0

Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type 1


1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.


Water Cooled 220V LCD Screen Mould Laser Welding Machine Manual Type 2
