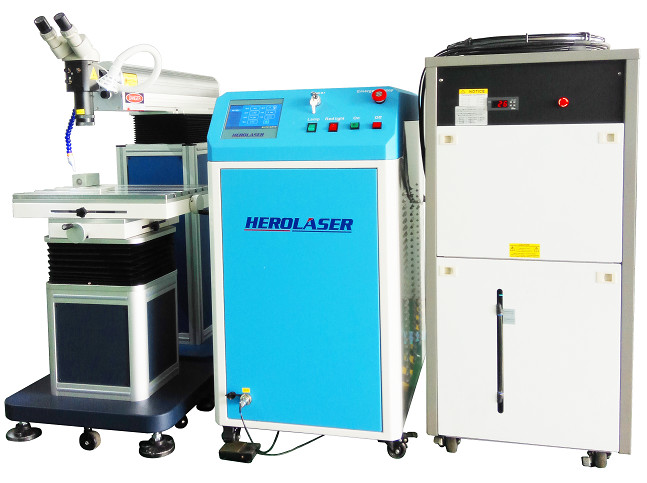

Crane Arm Precision 0.1mm Mould Laser Welding Machine With Wheels

Place of Origin China
Brand Name Herolaser
Certification CE, FDA
Model Number ML-WY-M02-400W
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case package: 1680*500*1500mm/560kg
Delivery Time 10-15 Days
Payment Terms T/T, Western Union
Supply Ability 200 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Laser Source YAG Laser Source Made By Herolaser Factory Laser Power Made By Herolaser Factory
Xenon Lamp Made In China CCD Camera Made In China
Touch Screen Made In China Protective Lens Singapore
Total Power Made In China Diameter Of Welding Wire 0.1mm-0.8mm
High Light

Crane Arm Precision Mould Laser Welding Machine


0.1mm Mould Laser Welding Machine


0.1mm laser beam welder

Leave a Message
Product Description

Crane Arm Mould Laser Welding Machine Repairing Various Mold Materials


Product introduction:


Laser mold welding machine fuse special welding wire damaged parts of the mold by laser instantaneous high heat energy, firmly welded to the original substrate, welding position will be by electric spark surface smooth, grinding and other processes method. After welding, thereby repair the mold. It can be used for precision repair of mold bubbles, cracks, collapses, wear and other small parts. Meichuang mold laser welding machine design beautiful, easy to move. To meet the repair needs of various mold materials, easy to operate. High hardness after welding, no crack and sand hole.




  • It adopted imported ceramic condenser cavity, high reflectivity, strong power, and extremely long services life.This model occupied the largest proportion in domestic market for its proven technology and stable performance.It equipped with 1.5P high power special cooling water system is able to support the machine to work longer hours with high power in good condition.
  • The base of the wortable uses electric lifting for up and down movement.
  • The moving unit of the worktable is equipped with precise ball bearing bar and linear lead rail.
  • It is light weight and flexible with precise positioning
  • The designed of the machine, such as the adjusted laser arm; laser head & the attach equipments is to meet the varied requirement of tool & die; mould repair jobs.


Technical Specification:


Model ML-WY-M02-400W
Laser Power 400W
Laser Type YAG
Max energy of single pulse 120J
Laser wavelength 1064nm
Pulse width 0.5-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Power Supply 380VAC ± 10% / 50HZ/ 50A
Power Consumption ≤ 12 KW

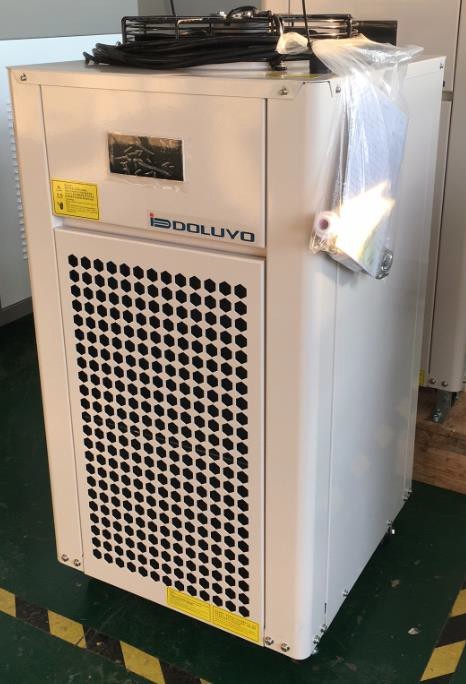

Cooling way Water cooling
Cooling water flow 10L/min
Max. height of mould 165cm
Travel of the worktable 170mm X 130mm X 200mm
Load-bearing of worktable less than 150KG
Focal distance 0.1mm-0.8mm
Weight ≤ 400kg


Applicable materials:


Laser die repairing welding machine is to weld the special welding wire to the damaged parts of the die through the instantaneous high heat energy generated by the laser, and firmly weld with the original base material. After welding, it is processed into a smooth surface by EDM or grinding, so as to repair the die.Widely used in die repair and metal parts repair, can weld a variety of die materials: S136, NAK80, 718, 738, P20, SKD-11, SKD-61, H13, W302, GS2344, GS2343, GS2082, etc.

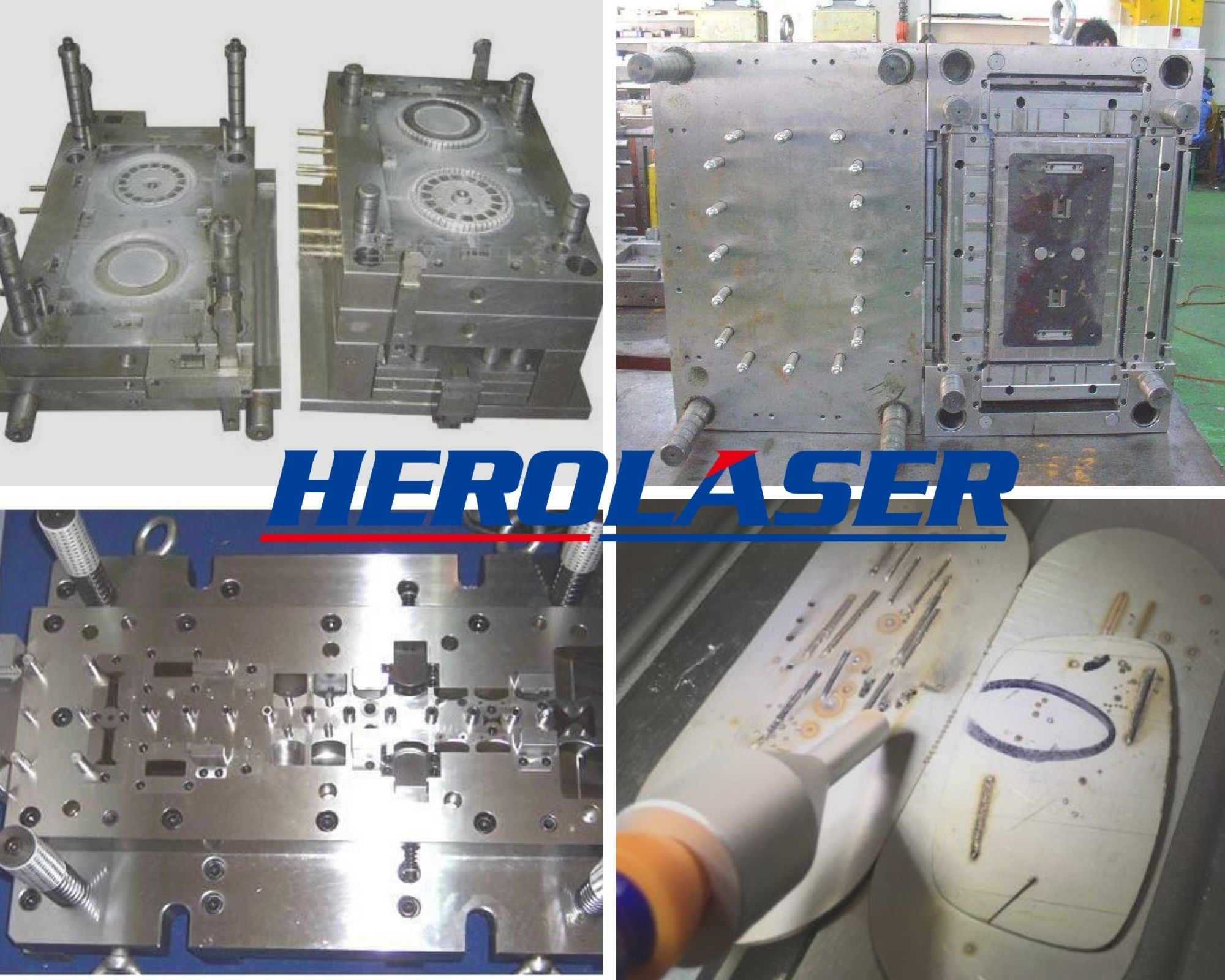

Samples for reference:


Crane Arm Precision 0.1mm Mould Laser Welding Machine With Wheels 0




1. How is the payment?

  • 30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

  • Ship in 7 days after 100% payment;
  • Plywood box packaging

3. How will you guarantee aftersales services?

  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online

4. How about your presales service?

  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.


Crane Arm Precision 0.1mm Mould Laser Welding Machine With Wheels 1
